MSCC
Detail Descriptions

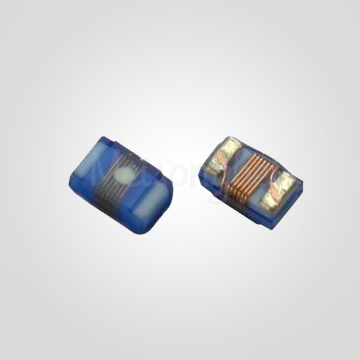

Surface-Mount Wire wound Ceramic Chip Inductors (MSCC Series)
|
Series |
Dimensions (mm) |
Inductance Range |
Range of SRF |
Rated Current |
Specification |
||
|
L |
W |
H |
|||||
|
MSCC1005 (0402) |
1.00 |
0.55 |
0.50 |
1 - 47nH |
2100 - 6000MHz |
150 - 1360mA |
|
|
MSCC1608 (0603) |
1.60 |
1.05 |
1.05 |
1 - 120nH |
1000 - 6900MHz |
170 - 700mA |
|
|
MSCC2012 (0805) |
2.00 |
1.25 |
1.20 |
2.2 - 150nH |
950 - 6000MHz |
400 - 800mA |
|
|
MSCC2520 (1008) |
2.50 |
2.00 |
1.60 |
3.3 - 1000nH |
310 - 6000MHz |
120 - 1000mA |
|
|
MSCC3225 (1210) |
3.20 |
2.50 |
2.20 |
4.7 - 2200nH |
200 - 6000MHz |
150 - 1000mA |
|
