Detail Descriptions

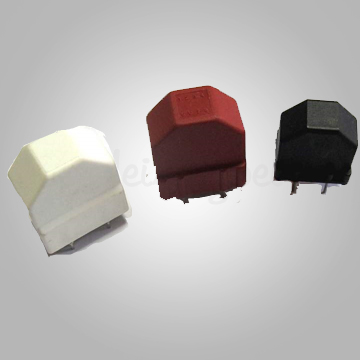

High Power Common Mode Chokes - EMI/RFI Filters (ET Series)
|
Series |
Dimensions (mm) |
Inductance Range (mH) |
Rated Current (A) |
Specification |
||
|
L |
W |
H |
||||
|
ET24V |
26.0 |
19.0 |
31.0 |
2.4 - 68 |
0.4 - 2.5 |
 |
|
ET28V |
30.5 |
22.0 |
36.0 |
1.8 - 35 |
1.0 – 4.0 |
|
|
ET35V |
37.0 |
26.0 |
45.0 |
4.7 - 33 |
1.5 - 4.0 |
|
|
ET24H |
26.0 |
26.0 |
22.0 |
2.4 - 68 |
0.4 - 2.5 |
|
|
ET28H |
30.0 |
30.0 |
26.0 |
1.8 - 35 |
1.0 – 4.0 |
|
|
ET35H |
37.0 |
37.0 |
28.5 |
4.7 - 33 |
1.5 - 4.0 |
|
