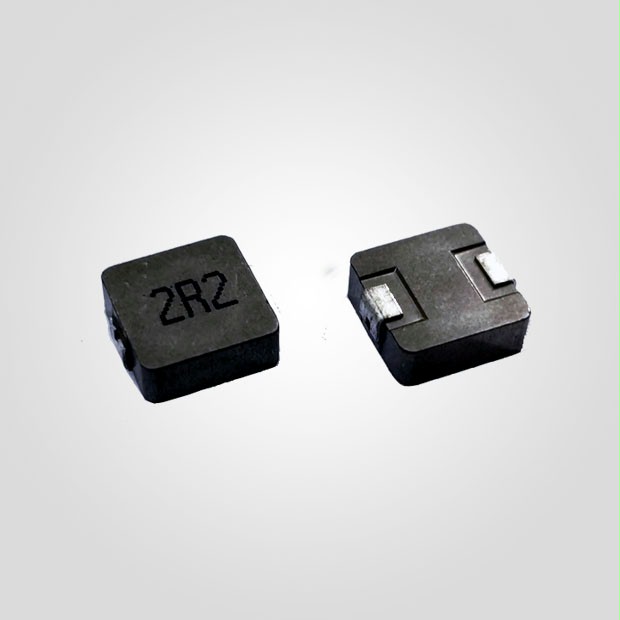

SMD High Current Inductors (HIP Series), Carbonyl powder Shielded Molded Power Inductor.
Download Spec(763.54KB)
|
Series |
Dimensions (mm) |
Inductance Range |
Saturation Current |
Specification |
||
|
L |
W |
H |
||||
|
HIP0320 |
3.4±0.35 |
3.2±0.3 |
1.8±0.2 |
0.33uH - 10uH |
1.4A - 8A |
 |
|
HIP0420 |
4.4±0.35 |
4.2±0.25 |
1.8±0.2 |
0.33uH - 10uH |
2.3A - 18A |
|
|
HIP0520 |
5.7±0.3 |
5.2±0.2 |
1.8±0.2 |
0.22uH - 22uH |
1.8A – 25A |
|
|
HIP0530 |
5.7±0.3 |
5.2±0.3 |
2.8±0.2 |
0.22uH - 22uH |
1.7A - 21A |
|
|
HIP0618 |
7.3±0.3 |
6.6±0.3 |
1.6±0.2 |
0.22uH - 10uH |
3.5A - 26A |
|
|
HIP0624 |
7.3±0.3 |
6.6±0.3 |
2.2±0.2 |
0.15uH - 10uH |
5A - 45A |
|
|
HIP0630 |
7.3±0.3 |
6.6±0.3 |
2.8±0.2 |
0.22uH - 33uH |
2A - 34A |
|
|
HIP0650 |
7.0±0.3 |
6.6±0.3 |
4.8±0.2 |
0.47uH - 47uH |
3.5A - 35A |
|
|
HIP1030 |
11.0±0.5 |
10.0±0.3 |
2.8±0.2 |
1uH - 10uH |
8A - 20A |
|
|
HIP1040 |
11.0±0.5 |
10.0±0.3 |
3.8±0.2 |
0.22uH - 47uH |
4.5A - 60A |
|
|
HIP1235 |
13.5±0.3 |
12.6±0.5 |
4.7±0.3 |
0.47uH - 47uH |
5.5A - 55A |
|
|
HIP1250 |
13.5±0.3 |
12.6±0.5 |
4.7±0.3 |
0.33uH - 33uH |
8A - 80A |
|
|
HIP1260 |
13.5±0.3 |
12.6±0.5 |
5.7±0.3 |
0.47uH - 150uH |
6A - 64A |
|
|
HIP1265 |
13.5±0.3 |
12.6±0.5 |
6.2±0.3 |
0.47uH - 22uH |
12A - 63A |
|
|
HIP1770 |
17.5±0.3 |
17.0±0.5 |
7.0 Max |
1uH - 100uH |
12A - 70A |
|
