Encapsualted Transformers

Characteristics

■ High Quality Encapsulated Transformer, Single/Dual Primary Winding

■ It has very high insulation of 4000Vrms Hi-pot.

■ Split-bobbin, Potted under vacuum. It accords with UL94V-0 flammability requirements.

Applications

■ Medical equipments, Industrial equipments

■ Industrial controls, Test equipments

■ Industrial computers, Avionics & telecom

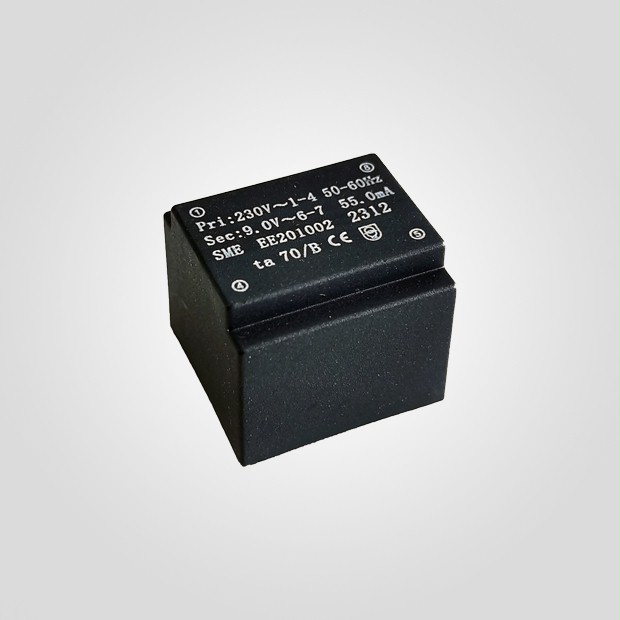

Encapsulated Transformer, PCB Mount - EE20 Series

Power	Type	Specification
0.35W	EE20-6.1	EE2006 Encapsulated Transformer.pdf
0.5W	EE20-10	EE2010 Encapsulated Transformer.pdf

Encapsulated transformers, PCB Mount transformers - EI30 EI38 EI42 EI48 EI54 EI60 EI66 Series

Power	Type	Specification
0.6 VA	EI30-5	EI3005 PCB Mount Encapsulated Transformers.pdf
1 VA	EI30-10.5	EI3010 PCB Mount Encapsulated Transformers.pdf
1.5 VA	EI30-12.5	EI3012 PCB Mount Encapsulated Transformers.pdf
2 VA	EI30-15.5	EI3015 PCB Mount Encapsulated Transformers.pdf
2.3 VA	EI30-18	EI3018 PCB Mount Encapsulated Transformers.pdf
3.2 VA	EI38-13.6	EI3813 PCB Mount Encapsulated Transformers.pdf
5 VA	EI42-14.8	EI4214 PCB Mount Encapsulated Transformers.pdf
10 VA	EI48-16.8	EI4816 PCB Mount Encapsulated Transformers.pdf
16 VA	EI54-18.8	EI5418 PCB Mount Encapsulated Transformers.pdf
22 VA	EI60-21	EI6021 PCB Mount Encapsulated Transformers.pdf
30 VA	EI66-23	EI6623 PCB Mount Encapsulated Transformers.pdf

Encapsulated transformers, PCB Mount EI48 EI54 Series

Power	Type	Specification
10VA	EI48-16.8	EI4816 PCB Mount Encapsulated Transformer.pdf
16VA	EI54-18.8	EI5418 PCB Mount Encapsulated Transformer.pdf

Encapsulated Transformer, PCB Mount UI30 UI39 Series

Power	Type	Specification
2VA - 10VA	UI30x5.5 UI30x5.5 UI30x7.5 UI30x10.5 UI30x16.5	UI30 Encapsulated PCB Mount Transformer.pdf
10VA - 30VA	UI39x8 UI39x10.2 UI39x13.5 UI39x17 UI39x21	UI39 Encapsulated PCB Mount Transformer.pdf
