■ Surface mount and coaxial case styles/Wideband SMD baluns up to GHz
■ 50/75 Ohm matching transformers and matching pads
■ Low profile and cost effective, Excellent Frequency Response
Applications
■ Double balance mixers, broad-band impedance transformers
■ Directional couplers for mixers, Set-top box and cable modem
Detail Descriptions

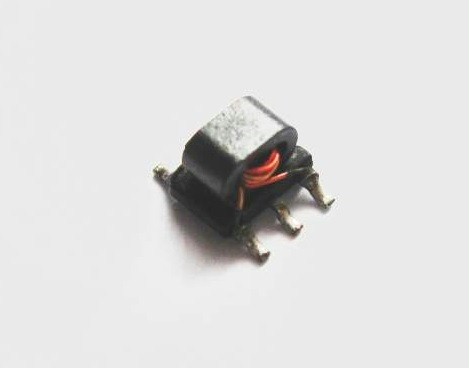

SMD balun transformers - MB4F, MDB1065 series
Series
|
Dimensions (mm)
|
Specification
|
L
|
W
|
H
|
MB4F-617DB-1007A~1024D
|
5.2±0.3
|
4.2±0.3
|
3.5Max
|
 |
MB4F-617PS-1660~1663
|
5.2±0.3
|
4.2±0.3
|
3.5Max
|
 |
MB4F-617PS-1662B
|
5.2±0.3
|
4.2±0.3
|
3.5Max
|
 |
MB4F-617PT-1667.1669.1699.1664
|
5.2±0.3
|
4.2±0.3
|
3.5Max
|
 |
MDB1065-651
|
13Max
|
11Max
|
6.5Max
|
 |
