Detail Descriptions

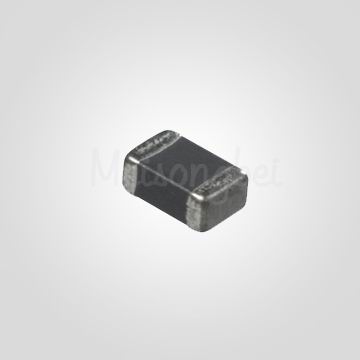

SMT EMI Suppression Ferrite Bead, Multilayer Chip Ferrite Beads for EMI Suppression
| Description | Series | Impedance Range | Rated Current | Specification |
|
Multilayer Chip Ferrite Beads |
MSMB100505 (0402) | 10 - 1000Ω | 50mA - 900mA |
 |
| MSMB160808 (0603) | 10 - 2500Ω | |||
| MSMB201209 (0805) | 5 - 2700Ω | |||
| MSMB321611 (1206) | 26 - 1500Ω | |||
| MSMB322513 (1210) | 31 - 60Ω | |||
| MSMB451616 (1806) | 60 - 600Ω | |||
| MSMB453215 (1812) | 60 - 150Ω | |||
|
High Current Chip Ferrite Beads |
MSMA100505 (0402) | 10 - 220Ω | 1A – 3A |
|
| MSMA160808 (0603) | 30 - 1200Ω | |||
| MSMA201209 (0805) | 30 - 1500Ω | |||
| MSMA321609 (1206) | 19 - 1000Ω | |||
| MSMA322513 (1210) | 60 - 1000Ω | |||
| MSMA451616 (1806) | 60 - 1000Ω | |||
| MSMA453215 (1812) | 120 - 780Ω | |||
|
Super High Current Chip Ferrite Beads |
MSMC160808 (0603) | 26Ω | 4 - 10A |
|
| MSMC201209 (0805) | 7 - 120Ω | |||
| MSMC321611 (1206) | 31 - 120Ω | |||
| MSMC322513 (1210) | 52 - 60Ω | |||
| MSMC451616 (1806) | 60Ω | |||
| MSMC453215 (1812) | 60 - 150Ω | |||
| MSMC565018 (2220) | 100 - 250Ω | |||
| MSMC853022 (3312) | 100Ω | |||
|
High frequency Chip Ferrite Beads |
MSBC1005 (0402) | 200 - 1000Ω | 50 - 300mA |
|
| MSBC1608 (0603) | 100 - 1200Ω |
