Detail Descriptions

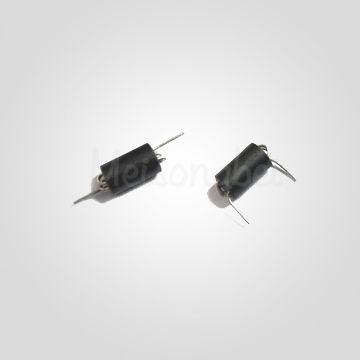

Axial Wide Band Choke Ferrite Beads (R6H Series)
|
Series |
Dimensions (mm) |
Impedance |
Impedance |
Specification |
|||
|
A ± 0.25 |
B ± 0.3 |
C (ref) |
D ± 0.05 |
||||
|
R6H - 1.5Ts |
6 |
10 |
3.5 |
0.5 / 0.6 |
300 |
500 |
|
|
R6H - 2.0Ts |
6 |
10 |
3.5 |
0.5 / 0.6 |
400 |
600 |
|
|
R6H - 2.5Ts |
6 |
10 |
3.5 |
0.5 / 0.6 |
600 |
800 |
|
|
R6H - 3.0Ts |
6 |
10 |
3.5 |
0.5 / 0.6 |
500 |
600 |
|
|
R6H - 2x1.5Ts |
6 |
10 |
3.5 |
0.5 / 0.6 |
800 |
900 |
|
