Detail Descriptions
10/100/1000 Base T Single port transformers
| Package | Series | Description | Specification |
| SMD, 24 Pin | MGSC-2401S | Single Port, 1500 Vrms Hipot |
 |
| SMD, 24 Pin | MGSC-2406S | Single Port, 1500 Vrms Hipot, Low Profile |
|
| SMD, 24 Pin | MGSC-2407S | Single Port, 1500 Vrms Hipot |
|
| SMD, 24 Pin | MGSC-2408S | Single Port, 1500 Vrms Hipot |
|
| SMD, 24 Pin | MGSC-2408CI | Single Port, 1500 Vrms Hipot, PoE, -40°C~85°C |
|
| SMD, 24 Pin | MGSC-2413S | Single Port, 1500 Vrms Hipot |
|
| SMD, 24 Pin | MGSC-2414S | Single Port, 1500 Vrms Hipot, Low Profile |
|
| SMD, 24 Pin | MGSC-2415S | Single Port, 1500 Vrms Hipot |
|
| SMD, 24 Pin | MGSC-2416S | Single Port, 1500 Vrms Hipot, Low Profile |
|
| SMD, 24 Pin | MGSC-2417S | Single Port, 1500 Vrms Hipot |
|
| SMD, 24 Pin | MGSC-2401I | Single Port, 1500 Vrms Hipot, -40°C~85°C |
|
| SMD, 24 Pin | MG2405CI | Single Port, 1500 Vrms Hipot, -40°C~85°C |
|
| SMD, 24 Pin | MG2436CI | Single Port, 1500 Vrms Hipot, -40°C~85°C |
|
| SMD, 48 Pin | MGSC-4802S | Dual Port, 1500 Vrms Hipot |
|
| SMD, 48 Pin | MGSC-4803S | Dual Port, 1500 Vrms Hipot |
|
| SMD, 48 Pin | MGSC-4804S | Dual Port, 1500 Vrms Hipot |
|
| SMD, 48 Pin | MGSC-4805S | Dual Port, 1500 Vrms Hipot |
|
| SMD, 48 Pin | MGSC-4807S | Dual Port, 1500 Vrms Hipot |
|
| SMD, 48 Pin | MGSC-4808S | Dual Port, 1500 Vrms Hipot |
|

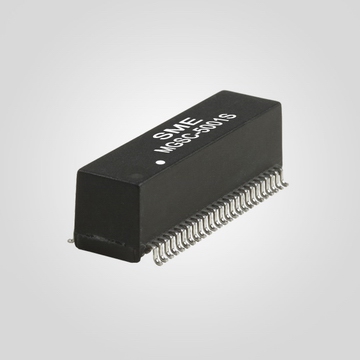

| SMD, 50 Pin | MGSC-5001S | Dual Port, 1500 Vrms Hipot |
|
| SMD, 50 Pin | MGSC-5002S | Dual Port, 1500 Vrms Hipot |
|
| SMD, 50 Pin | MGSC-5003S | Dual Port, 1500 Vrms Hipot |
|
| T.H., 18 Pin | MGTA-1801S | Single Port, 1500 Vrms Hipot |
|
| T.H., 18 Pin | MGTA-1810S | Single Port, 1500 Vrms Hipot |
|
| T.H., 24 Pin | MGTA-2401S | Single Port, 1500 Vrms Hipot |
|
| T.H., 24 Pin | MGTA-2403S | Single Port, 1500 Vrms Hipot |
|
| T.H., 24 Pin | MGTA-2406S | Single Port, 1500 Vrms Hipot |
|
| T.H., 24 Pin | MGTA-2409S | Single Port, 1500 Vrms Hipot |
|
| T.H., 36 Pin | MGTA-3601S | Dual Port, 1500 Vrms Hipot |
|
| T.H., 36 Pin | MGTA-3610S | Dual Port, 1500 Vrms Hipot |
|
| T.H., 48 Pin | MGTA-4801S | Dual Port, 1500 Vrms Hipot |
|
| T.H., 48 Pin | MGTA-4806S | Dual Port, 1500 Vrms Hipot |
|
| T.H., 48 Pin | MGTA-4807S | Dual Port, 1500 Vrms Hipot |
|
| T.H., 48 Pin | MGTA-4809S | Dual Port, 1500 Vrms Hipot |
|
| T.H., 72 Pin | MGTA-7201S | Quad Port, 1500 Vrms Hipot |
|
| T.H., 72 Pin | MGTA-7202S | Quad Port, 1500 Vrms Hipot |
|
| T.H., 72 Pin | MGTA-7208S | Quad Port, 1500 Vrms Hipot |
|
| T.H., 72 Pin | MGTA-7216S | Quad Port, 1500 Vrms Hipot |
|
| T.H., 88Pin | MGTA-8801S | Quad Port, 1500 Vrms Hipot |
|
