Mn-zn Ferrite Cores

Characteristics

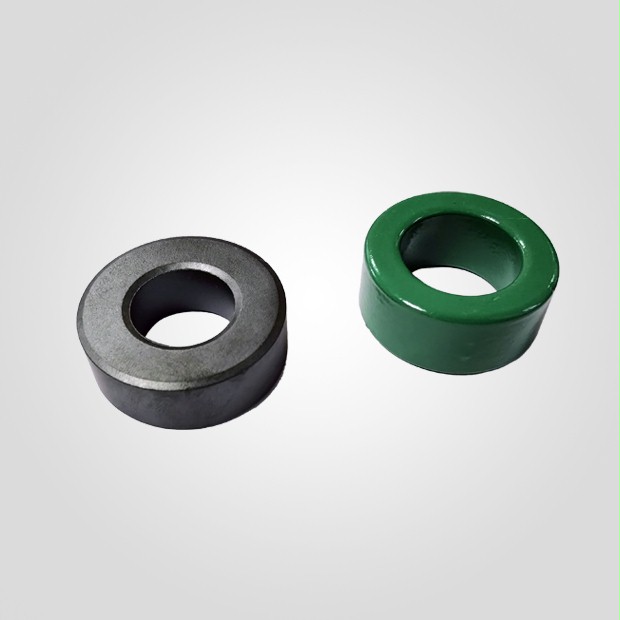

■ Mn-zn Toroidal Ferrite Core. Smoother winding surface

■ Various polymer and thermosetting coating available up to 2000Vrms.

■ UL rated coating available

Applications

■ High performance when wound and used as cores for transformers inductors or chokes.

■ Various materials and core sizes according the application size and frequency

Detail Descriptions

T Series Mn-zn Toroidal Ferrite core.

Example - Part number: T6x3x2-M5K Optional coating(C) Part number: T6x3x2C-M5

Type	D1(mm)	D2(mm)	H(mm)	M3	MC95	M5K	M7K	M10K	M12K
T6x3x2	6.0±0.3	3.0±0.3	2.0±0.2	620	880	1500	1900	2700	3200
T6x3x3	6.0±0.3	3.0±0.3	3.0±0.2	1000	1350	2250	3150	4200	4800
T8x4x3	8.0±0.3	4.0±0.3	3.0±0.3	920	1350	2200	2800	4200	5000
T8x4x4	8.0±0.3	4.0±0.3	4.0±0.3	1300	1700	2800	3700	5500	6600
T8x5x3	8.0±0.3	5.0±0.3	3.0±0.2	640	900	1500	1950	2800	3400
T9x5x3	9.0±0.3	5.0±0.3	3.0±0.2	800	1100	1800	2600	3500	4200
T9x5x4	9.0±0.3	5.0±0.3	4.0±0.2	1000	1500	2500	3200	4600	5500
T9x5x5	9.0±0.3	5.0±0.3	5.0±0.2	1300	1900	3100	4000	5700	6900
T9x5x7	9.0±0.3	5.0±0.3	7.0±0.2	1850	2650	4400	5600	8000	9600
T9.53x5.59x3.2	9.53±0.3	5.59±0.3	3.2±0.2	770	1100	1800	2300	3500	4000
T10x5x3	10.0±0.3	5.0±0.3	3.0±0.3	920	1300	2200	2800	4000	4800
T10x5x5	10.0±0.3	5.0±0.3	5.0±0.3	1700	2200	3600	4700	6900	8300
T10x6x2.8	10.0±0.3	6.0±0.3	2.8±0.2	650	930	1600	2000	2800	3400
T10x6x3.5	10.0±0.3	6.0±0.3	3.5±0.2	800	1200	1900	2500	3500	4200
T10x6x4	10.0±0.3	6.0±0.3	4.0±0.2	1000	1200	2200	2800	4100	4900
T10x6x5	10.0±0.3	6.0±0.3	5.0±0.3	1200	1700	2800	3500	5000	6000
T12x6x4	12.0±0.4	6.0±0.3	4.0±0.3	1300	1700	2900	3700	5500	6600
T12x6x6	12.0±0.4	6.0±0.3	6.0±0.3	1800	2600	4400	5600	8000	9600
T12.7x7.92x4.5	12.7±0.4	7.92±0.3	4.5±0.3	960	1400	2300	2900	4200	5000
T12.7x7.92x4.7	12.7±0.4	7.92±0.3	4.7±0.3	1000	1400	2400	3100	4400	5200
T12.7x7.92x4.9	12.7±0.4	7.92±0.3	4.9±0.3	1000	1500	2500	3200	4500	5500
T12.7x7.92x5	12.7±0.4	7.92±0.3	5.0±0.3	1000	1500	2600	3200	4600	5600
T12.7x7.92x6	12.7±0.4	7.92±0.3	6.0±0.3	1100	1500	2600	3200	4600	5600
T12.7x7.92x6.35	12.7±0.4	7.92±0.3	6.35±0.3	1400	1900	3200	4100	6000	7200
T13x7x3.5	13.0±0.4	7.0±0.3	3.5±0.3	970	1400	2300	2900	4200	5000
T13x7x5	13.0±0.4	7.0±0.3	5.0±0.3	1400	2000	3300	4200	6000	7200
T13x7x6	13.0±0.4	7.0±0.3	6.0±0.3	1700	2400	4000	5000	7200	8600
T14x7x7	14.0±0.4	7.0±0.3	7.0±0.3	2200	3100	5100	6500	9300	11200
T14x8x3	14.0±0.4	8.0±0.3	3.0±0.3	750	1100	1800	2300	3300	3900
T14x8x4	14.0±0.4	8.0±0.3	4.0±0.3	1100	1400	2400	3100	4500	5400
T14x8x5	14.0±0.4	8.0±0.3	5.0±0.3	1300	1800	3000	3800	5500	6600
T14x8x6	14.0±0.4	8.0±0.3	6.0±0.3	1500	2200	3600	4600	6500	7900
T14x8x7	14.0±0.4	8.0±0.3	7.0±0.3	1800	2500	4200	5300	7900	9500
T14x8x8	14.0±0.4	8.0±0.3	8.0±0.3	2000	2900	4800	6100	8700	10500
T14x8x9	14.0±0.4	8.0±0.3	9.0±0.3	2300	3200	5400	6900	9800	11800
T14x7x9	14.0±0.4	7.0±0.3	9.0±0.3	2800	4000	6600	8400	12000	14400
T14x9x5	14.0±0.4	9.0±0.3	5.0±0.3	1100	1300	2400	3000	4400	5300
T14x9x8	14.0±0.4	9.0±0.3	8.0±0.3	1600	2300	3800	4900	7000	8400
T14x10x2.6	14.0±0.3	10.0±0.3	2.3±0.3	400	570	950	1200	1700	2100
T14.6x10.5x3.7	14.6±0.3	10.5±0.3	3.7±0.3	550	800	1300	1700	2400	2900
T16x9x5	16.0±0.4	9.0±0.3	5.0±0.3	1300	1900	3100	3900	5600	6700
T16x9x6	16.0±0.4	9.0±0.3	6.0±0.3	1550	2200	3700	4700	6700	8000
T16x9x7	16.0±0.4	9.0±0.3	7.0±0.3	1800	2600	4300	5500	7800	9400
T16x9x8	16.0±0.4	9.0±0.3	8.0±0.3	2100	3000	5000	6300	9000	10800
T16x9.5x5	16.0±0.4	9.5±0.3	5.0±0.3	1200	1700	2800	3600	5100	6100
T16x9.5x6.3	16.0±0.4	9.5±0.3	6.3±0.3	1500	2100	3500	4500	6400	7700
T16x9.5x8	16.0±0.4	9.5±0.3	8.0±0.3	1900	2700	4500	5700	8200	9800
T16x9.6x6.1	16.0±0.4	9.6±0.3	6.1±0.3	1400	2000	3400	4300	6100	7300
T16x9.6x6.35	16.0±0.4	9.6±0.3	6.35±0.3	1500	2100	3500	4500	6400	7600
T16x9.6x8	16.0±0.4	9.6±0.3	8±0.3	1900	2700	4400	5600	8000	9600
T16x10x4	16.0±0.4	10.0±0.3	4.0±0.3	850	1200	2000	2600	3700	4400
T16x10x5	16.0±0.4	10.0±0.3	5.0±0.3	1100	1500	2500	3200	4600	5500
T16x10x6	16.0±0.4	10.0±0.3	6.0±0.3	1300	1800	3100	3900	5500	6600
T16x10x6.35	16.0±0.4	10.0±0.3	6.35±0.3	1400	1900	3200	4100	5900	7000
T16x10x6.5	16.0±0.4	10.0±0.3	6.5±0.3	1400	2000	3300	4200	6000	7200
T16x10x7	16.0±0.4	10.0±0.3	7.0±0.3	1480	2100	3600	4500	6600	7900
T16x10x8	16.0±0.4	10.0±0.3	8.0±0.3	1700	2400	4100	5200	7400	8900
T16x12x4	16.0±0.3	12.0±0.3	4.0±0.3	530	750	1300	1600	2300	2800
T16x12x8	16.0±0.3	12.0±0.3	8.0±0.3	1100	1500	2500	3200	4500	5400
T18x10x6	18.0±0.4	10.0±0.3	6.0±0.3	1600	2300	3800	4800	6900	8300
T18x10x6.35	18.0±0.4	10.0±0.3	6.35±0.3	1700	2400	4000	5100	7300	8700
T18x10x7	18.0±0.4	10.0±0.3	7.0±0.3	1800	2600	4400	5600	8000	9600
T18x10x8	18.0±0.4	10.0±0.3	8.0±0.3	2100	3000	5000	6400	9200	11000
T18x10x10	18.0±0.4	10.0±0.3	10.0±0.3	2600	3800	6300	8000	11500	14000
T18x10x15	18.0±0.4	10.0±0.3	15.0±0.3	3900	5700	9400	12000	17100	20600
T18x12x5	18.0±0.3	12.0±0.3	5.0±0.3	920	1300	2200	2800	4000	4800
T18x12x6	18.0±0.3	12.0±0.3	6.0±0.3	1100	1600	2600	3400	4800	5800
T18x12x8	18.0±0.3	12.0±0.3	8.0±0.3	1500	2100	3500	4500	6400	7700
T18.7x10.2x4	18.7±0.5	10.2±0.5	4.0±0.2	1100	1600	2600	3300	4700	5600
T19x9x10	19.0±0.4	9.0±0.3	10.0±0.3	3300	4700	7900	10000	14500	17500
T19x11x5	19.0±0.4	11.0±0.3	5.0±0.3	1200	1800	2900	3700	5500	6500
T19x11x10	19.0±0.4	11.0±0.3	10.0±0.3	2500	3500	5900	7500	11000	13000
T19x12.5x9.6	19.0±0.4	12.5±0.3	9.6±0.3	1800	2600	4400	5600	7900	9500
T19x13x5	19.0±0.4	13.0±0.3	5.0±0.3	870	1300	2100	2600	3800	4500
T19x13x6	19.0±0.4	13.0±0.3	6.0±0.3	1100	1400	2500	3200	4600	5500
T19x13x11	19.0±0.4	13.0±0.3	11.0±0.3	2000	2700	4500	5800	8300	10000
T19x13x12	19.0±0.4	13.0±0.3	12.0±0.3	2100	3000	5000	6300	9000	11000
T20x10x7	20.0±0.4	10.0±0.3	7.0±0.3	2300	3100	5100	6800	9700	11600
T20x10x8	20.0±0.4	10.0±0.3	8.0±0.3	2700	3500	5900	7500	11100	13300
T20x10x10	20.0±0.4	10.0±0.3	10.0±0.3	3300	4400	7300	9400	13800	16600
T20x11x6	20.0±0.4	11.0±0.4	6.0±0.3	1600	2300	3800	4900	7000	8500
T20x11x7	20.0±0.4	11.0±0.4	7.0±0.3	1900	2700	4500	5700	8200	9800
T20x11x10	20.0±0.4	11.0±0.4	10.0±0.3	2700	3800	6400	8200	11600	14000
T20x12x6	20.0±0.4	12.0±0.4	6.0±0.3	1400	2000	3300	4200	6000	7200
T20x12x6.35	20.0±0.4	12.0±0.4	6.35±0.3	1500	2100	3500	4400	6400	7700
T20x12x7	20.0±0.4	12.0±0.4	7.0±0.3	1600	2300	3900	4900	7000	8400
T20x12x8	20.0±0.4	12.0±0.4	8.0±0.3	1900	2700	4400	5600	8200	9800
T20x12x10	20.0±0.4	12.0±0.4	10.0±0.3	2300	3300	5500	7000	10000	12000
T22x13.7x6.35	22.0±0.4	13.7±0.4	6.35±0.3	1400	2000	3300	4200	6200	7300
T22x14x4	22.0±0.4	14.0±0.4	4.0±0.3	830	1200	2000	2600	3700	4400
T22x14x6	22.0±0.4	14.0±0.4	6.0±0.3	1200	1800	3000	3800	5500	6500
T22x14x6.35	22.0±0.4	14.0±0.4	6.35±0.3	1300	1900	3100	4000	5700	6800
T22x14x6.5	22.0±0.4	14.0±0.4	6.5±0.3	1400	2000	3200	4100	5800	6900
T22x14x7	22.0±0.4	14.0±0.4	7.0±0.3	1500	2100	3400	4400	6200	7500
T22x14x8	22.0±0.4	14.0±0.4	8.0±0.3	1700	2300	4000	5000	7200	8600
T22x14x9	22.0±0.4	14.0±0.4	9.0±0.3	1800	2600	4400	5600	8000	9600
T22x14x10	22.0±0.4	14.0±0.4	10.0±0.3	2100	2900	5000	6300	9000	10700
T22x14x12	22.0±0.4	14.0±0.4	12.0±0.3	2500	3500	5900	7500	10700	12800
T22x14x12.7	22.0±0.4	14.0±0.4	12.7±0.3	2600	3700	6200	7900	11500	13700
T22x14x13	22.0±0.4	14.0±0.4	13±0.3	2700	3800	6400	8100	11700	14000
T25x15x4	25.0±0.4	15.0±0.4	4.0±0.3	1000	1300	2200	2800	4000	4800
T25x15x7	25.0±0.4	15.0±0.4	7.0±0.3	1600	2300	3900	4900	7000	8500
T25x15x8	25.0±0.4	15.0±0.4	8.0±0.3	1800	2600	4400	5600	8000	9700
T25x15x9	25.0±0.4	15.0±0.4	9.0±0.3	2100	3000	5000	6300	9000	11000
T25x15x10	25.0±0.4	15.0±0.4	10.0±0.3	2400	3400	5600	7200	10200	12200
T25x15x12	25.0±0.4	15.0±0.4	12.0±0.3	2800	4000	6800	8600	12000	14600
T25x15x13	25.0±0.4	15.0±0.4	13.0±0.3	3200	4300	7300	9300	13200	15800
T25x15x15	25.0±0.4	15.0±0.4	15.0±0.3	3700	4900	8300	10700	15200	18200
T26x14.5x10	26.0±0.5	14.5±0.4	10.0±0.3	2700	3800	6300	8000	11500	13800
T26x14.5x15	26.0±0.5	14.5±0.4	15.0±0.3	4000	5700	9500	12100	17200	20600
T26x14.5x20	26.0±0.5	14.5±0.4	20.0±0.4	5300	7500	12600	16100	22900	27500
T28x16x12	28.0±0.4	16.0±0.4	12.0±0.3	3100	4400	7300	9300	13300	15900
T28x16x13	28.0±0.4	16.0±0.4	13.0±0.3	3300	4800	7900	10000	14300	17200
T28x16x15	28.0±0.4	16.0±0.4	15.0±0.3	3900	5500	9100	11600	16600	19800
T28x16x16	28.0±0.4	16.0±0.4	16.0±0.3	4100	5800	9700	12300	17700	21200
T28x18x12	28.0±0.4	18.0±0.4	12.0±0.3	2500	3500	5800	7400	10600	12700
T28x18x13	28.0±0.4	18.0±0.4	13.0±0.3	2700	3800	6300	8000	11500	13800
T29x18x15	29.0±0.5	18.0±0.5	15.0±0.3	3300	4700	7800	10000	14200	17000
T29x19x7	29.0±0.5	19.0±0.5	7.0±0.3	1400	2000	3300	4200	6000	7200
T29x19x7.5	29.0±0.5	19.0±0.5	7.5±0.3	1500	2200	3500	4500	6500	7700
T29x19x8	29.0±0.5	19.0±0.5	8.0±0.3	1600	2300	3800	4800	6900	8200
T29x19x10	29.0±0.5	19.0±0.5	10.0±0.3	2000	3000	4700	6000	8500	10200
T29x19x15	29.0±0.5	19.0±0.5	15.0±0.3	3000	4200	7000	8900	12700	15200
T31x18x14	31.0±0.5	18.0±0.5	14.0±0.3	3500	5000	8300	10500	15100	18100
T31x19x8	31.0±0.5	19.0±0.5	8.0±0.4	1900	2600	4300	5500	7900	9400
T31x19x10	31.0±0.5	19.0±0.5	10.0±0.4	2300	3300	5400	6800	9800	11700
T31x19x12	31.0±0.5	19.0±0.5	12.0±0.4	2800	3900	6400	8200	11700	14000
T31x19x13	31.0±0.5	19.0±0.5	13.0±0.4	3000	4200	7000	8800	12700	15200
T31x19x14	31.0±0.5	19.0±0.5	14.0±0.4	3200	4500	7500	9500	13700	16300
T31x19x15	31.0±0.5	19.0±0.5	15.0±0.4	3400	4800	8000	10200	14600	17500
T31x19x16	31.0±0.5	19.0±0.5	16.0±0.4	3600	5200	8500	10900	15600	18600
T31x19x17	31.0±0.5	19.0±0.5	17.0±0.4	3800	5500	9100	11500	16500	19800
T31x19x18	31.0±0.5	19.0±0.5	18.0±0.4	4000	5800	9600	12200	17500	21000
T31x20x6	31.0±0.5	20.0±0.4	6.0±0.4	1300	1800	2900	3700	5400	6400
T31x20x13	31.0±0.5	20.0±0.4	13.0±0.4	2700	3800	6300	8000	11400	13700
T31x20x14.8	31.0±0.5	20.0±0.4	14.8±0.4	3000	4300	7100	9000	13000	15500
T31x20x15	31.0±0.5	20.0±0.4	15.0±0.4	3100	4300	7200	9200	13000	15700
T31x20x16	31.0±0.5	20.0±0.4	16.0±0.4	3300	4600	7700	9700	14000	16700
T33x21.5x12.5	33.0±0.6	21.5±0.5	12.5±0.4	2500	3600	5900	7500	10800	12900
T33x21.5x15	33.0±0.6	21.5±0.5	15.0±0.4	3000	4200	7000	8900	12900	15400
T34x21.8x10	34.0±0.6	21.8±0.6	10.0±0.4	2100	3000	4900	6200	8900	10700
T34x21.8x21	34.0±0.6	21.8±0.6	21.0±0.4	4300	6100	10200	12900	18600	22200
T36x19x13	36.0±0.5	19.0±0.5	13.0±0.4	3800	5400	8900	11400	16200	19500
T36x23x10	36.0±0.5	23.0±0.5	10.0±0.4	2100	3000	4900	6300	9000	10800
T36x23x12	36.0±0.5	23.0±0.5	12.0±0.4	2500	3600	5900	7500	10800	12900
T36x23x15	36.0±0.5	23.0±0.5	15.0±0.4	3200	4400	7300	9400	13500	16000
T36x23x16	36.0±0.5	23.0±0.5	16.0±0.4	3300	4600	7800	9900	14300	17100
T36x23x18	36.0±0.5	23.0±0.5	18.0±0.4	3700	5300	8800	11200	16000	19200
T36x23x20	36.0±0.5	23.0±0.5	20.0±0.4	4100	5900	9800	12400	17800	21300
T36x23x22	36.0±0.5	23.0±0.5	22.0±0.4	4500	6500	10700	13600	19600	23500
T37x22x10	37.0±0.5	22.0±0.5	10.0±0.4	2400	3400	5600	7200	10400	12400
T37x22x12	37.0±0.5	22.0±0.5	12.0±0.4	2900	4100	6800	8600	12400	14800
T37x22x15	37.0±0.5	22.0±0.5	15.0±0.4	3600	5100	8500	10800	15400	18500
T37x23x15	37.0±0.5	23.0±0.5	15.0±0.4	3300	4700	7800	9900	14200	17000
T38x19x10	38.0±0.5	19.0±0.5	10.0±0.4	3100	4500	7400	9400	13300	16000
T38x19x13	38.0±0.5	19.0±0.5	13.0±0.4	4000	5800	9300	12000	17000	20600
T38x19x15	38.0±0.5	19.0±0.5	15.0±0.4	4600	6600	11000	14000	20000	24000
T38x19x17	38.0±0.5	19.0±0.5	17.0±0.4	520	7400	12400	15800	22600	27000
T38x19x21	38.0±0.5	19.0±0.5	21.0±0.4	6400	9200	15400	19600	28000	33400
T38x20.5x12	38.0±0.5	20.5±0.5	12.0±0.4	3300	4700	7800	1000	14100	17000
T38x20.5x15	38.0±0.5	20.5±0.5	15.0±0.4	4100	5900	9800	12500	17800	21300
T38x22x14	38.0±0.5	22.0±0.5	14.0±0.4	3400	4900	8200	10400	14800	17700
T38x22x15	38.0±0.5	22.0±0.5	15.0±0.4	3600	5200	8800	11200	15900	19000
T38x22x16	38.0±0.5	22.0±0.5	16.0±0.4	3900	5600	9300	11900	16900	20200
T38x22x19	38.0±0.5	22.0±0.5	19.0±0.4	4600	6600	11000	14000	20000	24100
T38x25x10	38.0±0.5	25.0±0.5	10.0±0.4	1800	2700	4500	5700	8100	9800
T38x25x12	38.0±0.5	25.0±0.5	12.0±0.4	2200	3200	5400	6900	9800	11700
T38x25x15	38.0±0.5	25.0±0.5	15.0±0.4	2800	4000	6800	8600	12200	14700
T38x25x16	38.0±0.5	25.0±0.5	16.0±0.4	3000	4300	7200	9200	13100	15600
T38x25x22	38.0±0.5	25.0±0.5	22.0±0.4	4100	5900	9900	12700	18000	21700
T40x23x20	40.0±0.8	23.0±0.6	20.0±0.5	4900	7100	11800	15100	21500	25800
T40x24x16	40.0±0.8	24.0±0.6	16.0±0.4	3600	5200	8800	11200	16000	19000
T40x24x20	40.0±0.8	24.0±0.6	20.0±0.5	4600	6600	11000	14000	20000	24000
T42x26x12.6	42.0±0.8	26.0±0.6	12.6±0.4	2700	3900	6500	8300	11800	14200
T42x26x13	42.0±0.8	26.0±0.6	13.0±0.4	2800	4000	6700	8500	12200	14600
T42x26x15	42.0±0.8	26.0±0.6	15.0±0.4	3200	4600	7700	9800	14000	16900
T42x26x16	42.0±0.8	26.0±0.6	16.0±0.4	3400	4900	8200	10500	15000	18000
T42x26x18	42.0±0.8	26.0±0.6	18.0±0.6	3800	5500	9300	11800	16900	20300
T42x26x20	42.0±0.8	26.0±0.6	20.0±0.4	4300	6200	10300	13100	18800	22500
T42x26x25	42.0±0.8	26.0±0.6	25.0±0.4	5400	7700	12900	16400	23500	28200
T45x30x13	45.0±0.8	30.0±0.6	13.0±0.4	2300	3400	5700	7200	10400	12400
T45x30x15	45.0±0.8	30.0±0.6	15.0±0.4	2700	3900	6600	8400	12000	14400
T47x27x15	47.0±0.8	27.0±0.6	15.0±0.4	3700	5300	8900	11300	16200	19400
T48x30x10	48.0±1.0	30.0±0.5	10.0±0.3	2100	3000	5000	6400	9200	11000
T48x30x15	48.0±1.0	30.0±0.5	15.0±0.4	3100	4500	7600	9600	13800	16600
T48x30x22	48.0±0.8	30.0±0.8	22.0±0.5	4600	6700	11100	14200	20300	24300
T49x31x15	49.0±0.6	31.0±0.6	15.0±0.4	3100	4400	7400	9400	13500	16200
T49x31x19	49.0±0.6	31.0±0.6	18.8±0.3	3900	5600	9400	11900	17100	20500
T49x31.8x15.8	49.0±0.6	31.8±0.6	15.8±0.3	3000	4400	7300	9400	13400	16100
T49x31.8x16	49.0±0.6	31.8±0.6	16.0±0.3	3100	4500	7400	9500	13600	16300
T49x31.8x19	49.0±0.6	31.8±0.6	18.8±0.3	3700	5300	8890	11300	16100	19400
T49x33.8x16	49.0±0.6	33.8±0.6	16.0±0.3	2700	3800	6400	8200	11700	14000
T49x33.8x19	49.0±0.6	33.8±0.6	19.0±0.3	3200	4600	7600	9700	13900	16700
T49x33.8x20	49.0±0.6	33.8±0.6	20.0±0.3	3300	4800	8000	10200	14600	17600
T49x33.8x31.6	49.0±0.6	33.8±0.6	31.6±0.3	5300	7600	12700	16200	23200	27800
T50x25x15	50.0±1.0	25.0±0.6	15.0±0.6	4600	6600	11000	14000	20000	24000
T50x25x19	50.0±1.0	25.0±0.6	19.0±0.6	5800	8300	13900	17700	25300	30400
T50x25x20	50.0±1.0	25.0±0.6	20.0±0.6	6100	8800	14600	18600	26600	32000
T50x30x13	50.0±1.0	30.0±0.6	13.0±0.6	2900	4200	7100	9100	13000	15600
T50x30x19	50.0±1.0	30.0±0.6	19.0±0.6	4300	6200	10400	13300	19000	22800
T50x30x20	50.0±1.0	30.0±0.6	20.0±0.6	4600	6600	11000	14000	20000	24000
T50x30x25	50.0±1.0	30.0±0.6	25.0±0.6	5700	8200	13700	17500	25000	30000
T50x30x26	50.0±1.0	30.0±0.6	26.0±0.6	5900	8500	14300	18200	26000	31200
T51x31x10	51.5±1.0	31.5±0.8	10.0±0.4	2200	3100	5300	6700	9600	11500
T51x31x13	51.5±1.0	31.5±0.8	13.0±0.4	2800	4100	6900	8700	12500	15000
T51x31x17	51.5±1.0	31.5±0.8	17.0±0.4	3700	5400	9000	11400	16300	19600
T51x31x24.5	51.5±1.0	31.5±0.8	24.5±0.6	5400	7700	12900	16500	23600	28300
T51x31x25	51.5±1.0	31.5±0.8	25.0±0.6	5500	7900	13200	16800	2400	28900
T56x26x20	56.2±1.0	26.0±0.6	26.0±0.6	6700	9600	16000	20000	29000	35100
T56x28x20	56.0±1.0	28.0±0.8	20.0±0.6	6100	8800	14600	18600	26000	32000
T56x32x15	56.0±1.0	32.0±1.0	15.0±0.6	3700	5400	9000	11400	16300	19600
T56x32x16.5	56.0±1.0	32.0±1.0	16.5±0.6	4100	5900	9900	12600	18000	21600
T56x32x18	56.0±1.0	32.0±1.0	18.0±0.6	4500	6400	10800	13700	19600	23500
T56x32x20	56.0±1.0	32.0±1.0	20.0±0.6	5000	7200	12000	15273	21818	26182
T56x36x20	56.0±1.0	36.0±1.0	20.0±0.6	4000	5700	9500	12100	17300	20800
T58x38x21.4	57.5±1.5	38.3±1.0	21.4±0.6	3900	5600	9400	12000	17100	20500
T58x40x18	58.0±1.5	40.0±1.0	18.0±0.6	3900	5600	9400	12000	17100	20500
T60x35x20	60.0±1.5	35.0±1.0	20.0±0.6	4600	6600	11000	14000	20000	24000
T60x38x20	60.0±1.5	38.0±1.0	20.0±0.6	4100	5900	9800	12500	17900	21500
T60x40x18	60.0±1.5	40.0±1.0	18.0±0.6	3300	4700	7900	10000	14400	17000
T60x40x20	60.0±1.5	40.0±1.0	20.0±0.6	3600	5200	8800	11200	16000	19000
T60x40x25	60.0±1.5	40.0±1.0	25.0±0.6	4600	6600	11000	14000	20000	24000
T63x38x12.7	63.0±1.0	38.0±0.5	12.7±0.5	2900	4100	6900	8800	12500	15000
T63x38x20	63.0±1.5	38.0±1.0	20.0±0.8	4500	6500	10800	13800	19800	23500
T63x38x21	63.0±1.5	38.0±1.0	21.0±0.8	4700	6800	11400	14500	20700	24700
T63x38x25	63.0±1.5	38.0±1.0	25.0±0.8	5700	8100	13600	17300	24700	29500
T61.8x39x31.8	61.8±1.5	39.0±1.0	31.8±0.8	7500	10700	17900	22800	32600	39000
T68x44x12.7	68.0±1.5	44.0±0.8	12.7±0.5	2100	2900	4900	6300	9000	10500
T68x44x15	68.0±1.5	44.0±0.8	15.0±0.5	2400	3500	5800	7400	10600	12500
T68x44x25	68.0±1.5	44.0±1.0	25.0±0.5	4000	5800	9700	12400	17700	21000
T74x40x13	74.0±1.5	40.0±1.0	13.0±0.4	3500	5100	8500	10800	15500	18500
T74x44x20	75.0±1.5	44.0±1.0	20.0±0.5	5400	7800	13100	16700	23800	28500
T78x50x20	78.0±1.5	50.0±1.0	20.0±0.5	4000	5700	9600	12200	17500	21000
T80x40x15	80.0±1.5	40.0±1.0	15.0±0.5	4600	6600	11000	14000	20000	24000
T80x50x20	80.0±1.5	50.0±1.0	20.0±0.8	4200	6000	10100	12900	18400	22000
T80x50x25	80.0±1.5	50.0±1.0	25.0±0.8	5300	7600	12600	16100	23000	27500
T85x55x25	85.0±2.0	55.0±1.5	25.0±0.5	4900	7000	11700	15000	21400	25500
T85x55.4x25	85.2±2.0	55.4±1.5	25.0±0.5	4800	6900	11500	14700	21000	25000
T86x57x25.4	86.0±2.0	57.0±1.5	25.4±0.5	4700	6700	11300	14400	20600	24500
T86x63x30	86.0±2.0	63.0±1.5	30.0±0.5	4200	6100	10100	12900	18000	22000
T87x54x14	87.0±2.0	55.0±2.0	14.0±0.5	2900	4000	6800	8700	12500	15000
T87x54x15	87.0±2.0	55.0±2.0	14.8±0.5	3100	4400	7200	9200	13300	16000
T87x54x30	87.0±2.0	55.0±2.0	30.0±1.0	6200	8900	14000	18300	26500	32000
T87x55x12.7	87.0±2.0	55.0±2.0	12.7.0±1.0	2600	3700	6000	7800	11000	13200
T87x55x13.8	87.0±2.0	55.0±2.0	13.8±1.0	2800	4000	6500	8500	12000	14500
T90x57x25.4	90.0±2.0	57.0±2.0	25.4±0.6	5200	7500	12000	15000	22000	27000
T100x50x20	100.0±2.0	50.0±2.0	20.0±0.4	6100	8800	14400	18400	26400	31500
T102x66x15	102.0±2.0	66.0±2.0	15.0±0.6	2900	4200	7000	9000	12500	15000
