Detail Descriptions

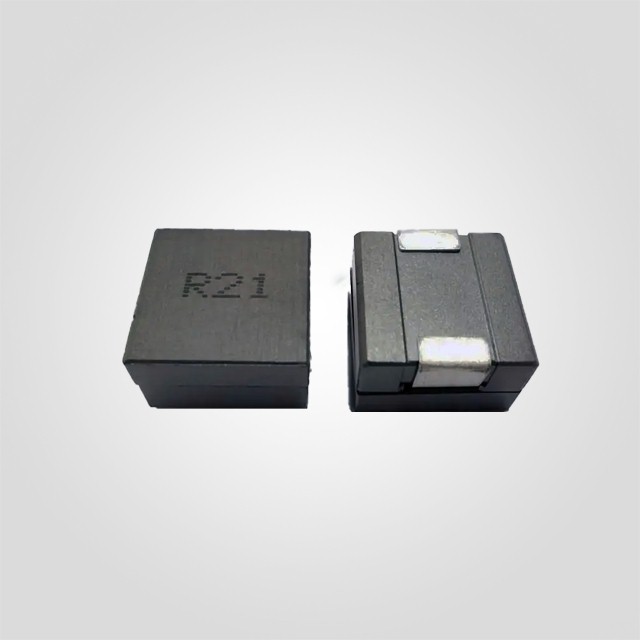

SMD High Current Power Bead Inductor, AI Server Inductor - MHC Series
| Type | Dimensions (mm) | Inductance Range | DCR | Specification |
| MHC050506 | 5.2x5.0x6.1 | 50nH - 100nH | 0.20mΩ |
 |
| MHC6030 | 7.2x6.7x3.0 | 47nH - 64nH | 0.24mΩ |
|
| MHC7050 | 7.0x6.6x5.0 | 47nH - 310nH | 0.26mΩ |
|
| MHC7070 | 7.0x7.0x7.0 | 100nH - 330nH | 0.29mΩ |
|
| MHC1050 | 10.0x7.0x5.0 | 120nH - 220nH | 0.34mΩ |
|
| MHC100705-D32 | 10.2x7.0x5.0 | 72nH - 300nH | 0.325mΩ |
|
| MHC100705-D29 | 10.2x7.0x5.0 | 100nH - 200nH | 0.29mΩ |
|
| MHC1070-D29 | 11.0x7.5x7.0 | 120nH - 330nH | 0.29mΩ |
|
| MHC1070-D70 | 10.4x7.4x7.0 | 150nH - 370nH | 0.70mΩ |
|
| MHC1070-D47 | 10.1x7.0x7.0 | 100nH - 400nH | 0.47mΩ |
|
| MHC1075-D29 | 10.3x7.0x7.2 | 100nH - 510nH | 0.29mΩ |
|
| MHC1075-D47 | 11.0x7.0x7.0 | 120nH - 510nH | 0.47mΩ |
|
| MHC100707 | 11.0x7.5x7.0 | 120nH - 250nH | 0.37mΩ |
|
| MHC100865 | 10.4x8.0x6.5 | 120nH - 300nH | 0.48mΩ |
|
| MHC101005 | 10.0x9.7x5.0 | 200nH - 360nH | 0.26mΩ |
|
| MHC110707 | 10.2x7.6x7.2 | 150nH - 500nH | 0.29mΩ |
|
| MHC110709 | 9.8x7.5x9.0 | 150nH - 400nH | 0.29mΩ |
|
| MHC1190 | 11.3x11.0x9.0 | 150nH - 540nH | 0.30mΩ |
|
| MHC130704 | 13.3x7.5x4.2 | 100nH - 470nH | 0.225mΩ |
|
| MHC1350 | 13.5x13.2x5.0 | 100nH - 520nH | 0.155mΩ |
|
| MHC1380 | 13.46x12.95x8.5 | 110nH - 500nH | 0.32mΩ |
|
| MHC1390 | 14.0x12.8x9.0 | 230nH - 450nH | 0.30mΩ |
|
| MHC150705 | 14.7x6.7x5.0 | 100nH - 150nH | 0.47mΩ |
|
