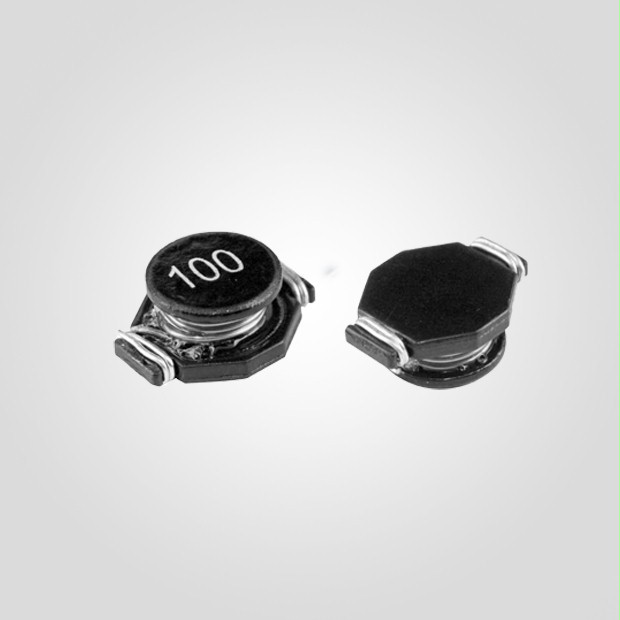

Surface Mount wire wound High Current Inductors (MSG1813HC / MSG3316HC Series)
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| MSG1813HC | 8.9x6.1x5 | 0.18uH - 100uH | 0.5A - 14A |
 |
| MSG3316HC | 13.2x9.9x6.5 | 0.33uH - 4.7uH | 5.4A - 20A |
|
| Part Number | Inductance | DCR (Ω) | Isat (A) | Cross Coilcraft P/N |
| MSG1813HC-R18M | 0.18±20% | 0.003 | 14 | DO1813H-181ML |
| MSG1813HC-R33M | 0.33±20% | 0.004 | 10 | DO1813H-331ML |
| MSG1813HC-R56M | 0.56±20% | 0.01 | 7.7 | DO1813H-561ML |
| MSG1813HC-1R2M | 1.2±20% | 0.017 | 5.3 | DO1813H-122ML |
| MSG1813HC-2R2M | 2.2±20% | 0.035 | 3.5 | DO1813H-222ML |
| MSG1813HC-3R3M | 3.3±20% | 0.04 | 3 | DO1813H-332ML |
| MSG1813HC-4R7M | 4.7±20% | 0.054 | 2.6 | DO1813H-472ML |
| MSG1813HC-6R8M | 6.8±20% | 0.08 | 2.2 | DO1813H-682ML |
| MSG1813HC-100M | 10±20% | 0.111 | 1.9 | DO1813H-103ML |
| MSG1813HC-150M | 15±20% | 0.17 | 1.5 | DO1813H-153ML |
| MSG1813HC-220M | 22±20% | 0.25 | 1.2 | DO1813H-223ML |
| MSG1813HC-330M | 33±20% | 0.35 | 0.99 | DO1813H-333ML |
| MSG1813HC-470M | 47±20% | 0.47 | 0.87 | DO1813H-473ML |
| Part Number | Inductance | DCR (Ω) | Isat (A) | Cross Coilcraft P/N |
| MSG3316HC-R33M | 0.33±20% | 0.002 | 20 | DO3316H-331ML |
| MSG3316HC-R68M | 0.68±20% | 0.005 | 13 | DO3316H-681ML |
| MSG3316HC-1R0M | 1.0±20% | 0.006 | 11 | DO3316H-102ML |
| MSG3316HC-1R5M | 1.5±20% | 0.008 | 9 | DO3316H-152ML |
| MSG3316HC-2R2M | 2.2±20% | 0.011 | 7.8 | DO3316H-222ML |
| MSG3316HC-2R7M | 2.7±20% | 0.012 | 7 | DO3316H-272ML |
| MSG3316HC-3R3M | 3.3±20% | 0.014 | 6.4 | DO3316H-332ML |
| MSG3316HC-4R7M | 4.7±20% | 0.018 | 5.4 | DO3316H-472ML |
