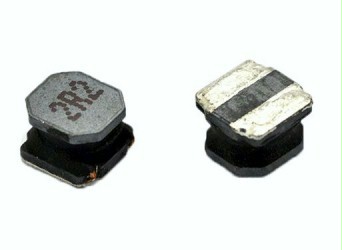

SMD Semi-Shielded Power Inductors - SNR Series
Download Spec(6521.20KB)
Resin Shielded Power inductor RoHS Compliance
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| SNR3010 | 3x3x1.2 | 1uH - 47uH | 0.22A - 1.4A |
 |
| SNR3012 | 3x3x1.3 | 1uH - 100uH | 0.21A - 2.2A |
|
| SNR3015 | 3x3x1.7 | 1uH - 47uH | 0.4A - 2.5A |
|
| SNR4010 | 4x4x1.2 | 1uH - 47uH | 0.23A - 2.2A |
|
| SNR4012 | 4x4x1.35 | 1uH - 68uH | 0.3A - 2.61A |
|
| SNR4018 | 4x4x1.8 | 1uH - 220uH | 0.28A - 4.5A |
|
| SNR4020 | 4x4x2.1 | 1uH - 82uH | 0.5A - 4.78A |
|
| SNR4026 | 4x4x2.8 | 1uH - 68uH | 0.8A - 3.3A |
|
| SNR4030 | 4x4x3 | 1uH - 220uH | 0.33A - 5A |
|
| SNR5012 | 5x5x1.3 | 1uH - 22uH | 1.1A - 4A |
|
| SNR5040 | 5x5x4 | 1uH - 220uH | 0.4A - 7.3A |
|
| SNR5045 | 5x5x4.5 | 1uH - 470uH | 0.2A - 6A |
|
| SNR6020 | 6x6x2 | 1uH - 100uH | 0.5A - 4.25A |
|
