Detail Descriptions

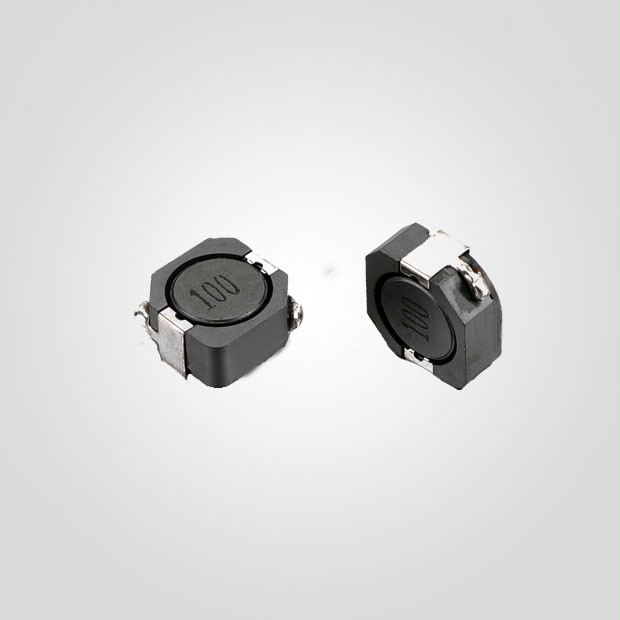

SMD Shielded High Current Low Profile Power Inductor (MSRH103/104/105 Series). RoHS Compliance
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L(max) |
W(max) |
H(max) |
||||
|
MSRH103 |
10.3 |
10.5 |
3.0 |
10µH - 150µH |
0.7A - 2.7A |
|
|
MSRH104 |
10.3 |
10.5 |
4.0 |
1.3µH - 330µH |
0.7A - 10.0A |
|
|
MSRH105 |
10.3 |
10.5 |
5.1 |
6.8µH - 1000µH |
0.48A - 5.5A |
|
