■ Open magnetic circuit design and protect by UL or PVC Heat-shrinkable tube.
■ Low cost and high reliability. Radial, Vertical Dip.
Applications
■ Cellular phone, ADSL modem, Copying machine, Gaming machine, Color TV,
■ Display monitor, Inkjet printer, Microwave oven, Lighting and Car electronics.
Detail Descriptions

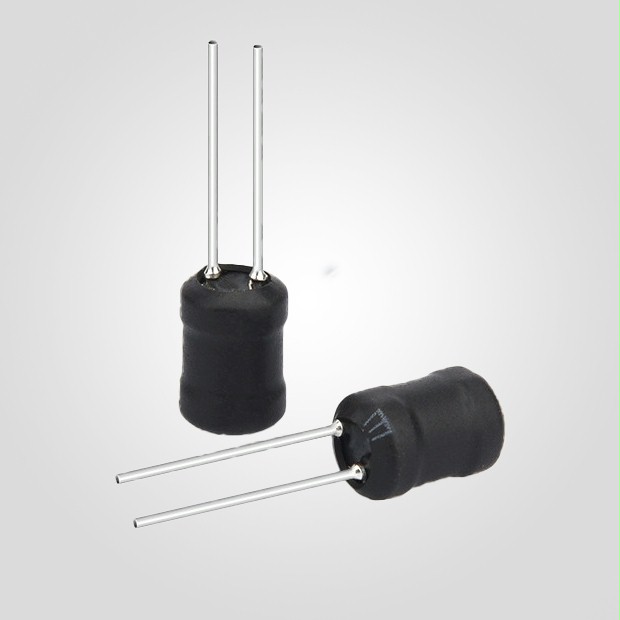

Through hole Radial Leaded Fixed Inductors With UL/PVC Tube (MCHB Series) Power Choke Coil Inductors
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
|
MCHB0406 |
5x8 |
1µH - 25000µH |
0.02A - 2.0A |
 |
|
MCHB0608 |
7.5x10 |
1µH - 47000µH |
0.015A - 1.3A |
|
MCHB0810 |
9.0x12 |
1µH - 100000µH |
0.08A - 3.4A |
|
MCHB0912 |
10x14 |
1µH - 47000µH |
0.03A - 2.8A |
|
MCHB1012 |
11x14 |
1µH - 100000µH |
0.055A - 3A |
|
MCHB1016 |
11x18 |
1µH - 27000µH |
0.13A – 6.8A |
Choke coils, also known as: Choke, differential mode inductors, is used to limit the alternating current through the coil, high-frequency and low frequency choke coils. The (MCHB) features with small size, high Q value, low cost, high self-resonance frequency, high availability of a large induced current, small magnetic flux leakage and so on. Meisongbei will also produce devices outside these specifications to meet specific customer requirements, contact our sales for more information.
