Detail Descriptions

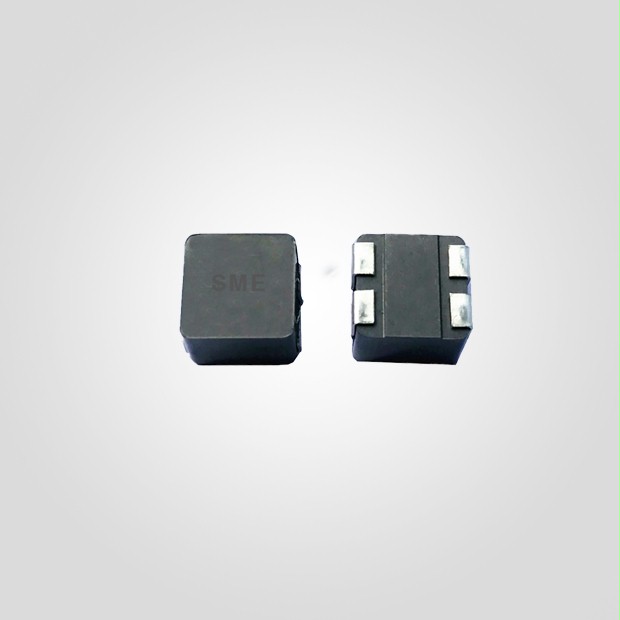

SMD Molded Coupled Inductors (MCRI Series).
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| MCRI1050 | 11.5x10.2x5 | 1uH - 47uH | 4.4A - 30.2A |
 |
| MCRI1090 | 11.5x10.2x5 | 1uH - 47uH | 6A - 43.5A |
|
| Part Number | Inductance (uH) | DCR (mΩ) Max. | Isat (A) | Cross Wurth P/N |
| MCRI1050-3R3M | 3.3±20% | 22 | 32 | 7448991033 |
| MCRI1050-4R7M | 4.7±20% | 32 | 30 | 7448991047 |
| MCRI1050-5R6M | 5.6±20% | 45 | 23 | 7448991056 |
| MCRI1050-150M | 15±20% | 95 | 13 | 7448991150 |
| MCRI1050-220M | 22±20% | 115 | 10 | 7448991220 |
| Part Number | Inductance (uH) | DCR (mΩ) Max. | Isat (A) | Cross Wurth P/N |
| MCRI1090-1R0M | 1.0±20% | 5.6 | 43.5 | 7448991010 |
| MCRI1090-1R5M | 1.5±20% | 9.4 | 34 | 7448991015 |
| MCRI1090-2R2M | 2.2±20% | 12.5 | 29.5 | 7448991022 |
| MCRI1090-3R3M | 3.3±20% | 26 | 28.2 | 7448991033 |
| MCRI1090-4R7M | 4.7±20% | 40 | 24.2 | 7448991047 |
| MCRI1090-6R8M | 6.8±20% | 51.5 | 21.2 | 7448991068 |
| MCRI1090-8R2M | 8.2±20% | 63 | 18.5 | 7448991082 |
| MCRI1090-100M | 10±20% | 69 | 17 | 7448991100 |
| MCRI1090-150M | 15±20% | 87 | 9.5 | 7448991150 |
| MCRI1090-220M | 22±20% | 106 | 8.1 | 7448991220 |
| MCRI1090-330M | 33±20% | 145 | 6.8 | 7448991330 |
| MCRI1090-470M | 47±20% | 240 | 6 | 7448991470 |
