Detail Descriptions

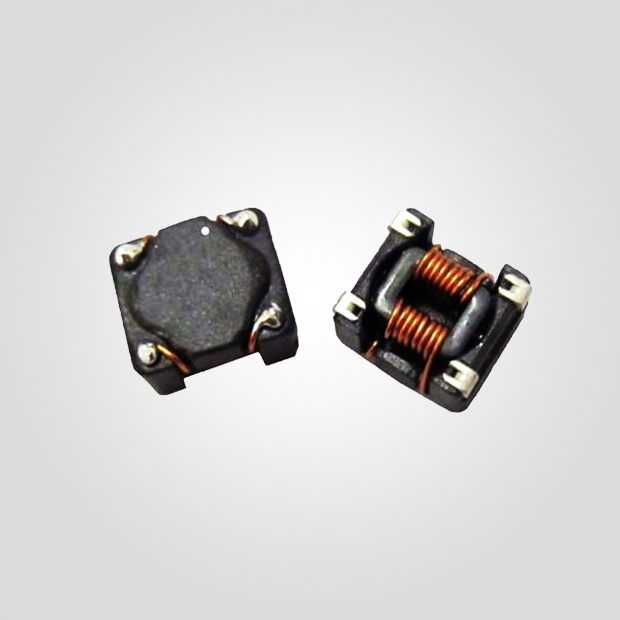

SMD Common Mode Line Filter – MSCB1085 Series
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| MSCB1085 | 10x8.7x6.5 | 120uH - 3300uH | 0.65A - 2.5A |
 |
| Part Number | Inductance (uH) | Impedance (Ω) | Rated Current (A) | Cross Wurth P/N |
| MSCB1085-121 | 120±40% | 460 | 2.5 | 744272121 |
| MSCB1085-221 | 220±40% | 780 | 2.2 | 744272221 |
| MSCB1085-251 | 250±40% | 970 | 2 | 744272251 |
| MSCB1085-471 | 470±40% | 1750 | 1.6 | 744272471 |
| MSCB1085-102 | 1000±40% | 3600 | 0.95 | 744272102 |
| MSCB1085-332 | 3300±40% | 8900 | 0.65 | 744272332 |
