Detail Descriptions

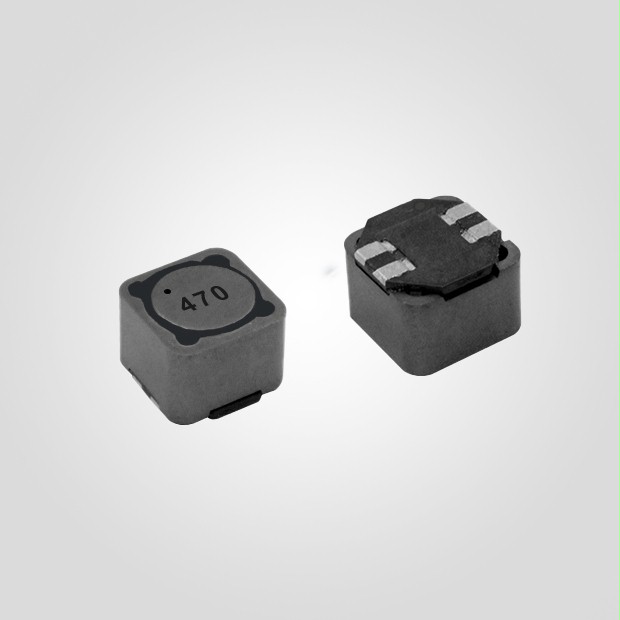

Meisongbei SMD Coupled inductors MSRH-DP Series (Crossed Winding). RoHS Compliance
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| MSRH74DP | 7.3x7.3x4.6 | 3.3uH - 1000uH | 0.31A - 5.4A |
 |
| MSRH125DP | 12.2x12.2x6 | 4.7uH - 1000uH | 0.69A - 10.3A |
|
| MSRH127DP | 12.2x12.2x7.8 | 4.7uH - 1000uH | 1.1A - 14.9A |
|
Equal to Coilcraft MSS1278 / MSS1260 / MSD7342 Series. Bourns SRF1260 / SRF1280 Series.
Meisongbei MSRH-DP Series of 1:1 coupled power inductors feature magnetic shielding for compact packaging and tight winding-to-winding coupling. They are ideal for Flyback, SEPIC, , Zeta and other applications.
