Detail Descriptions

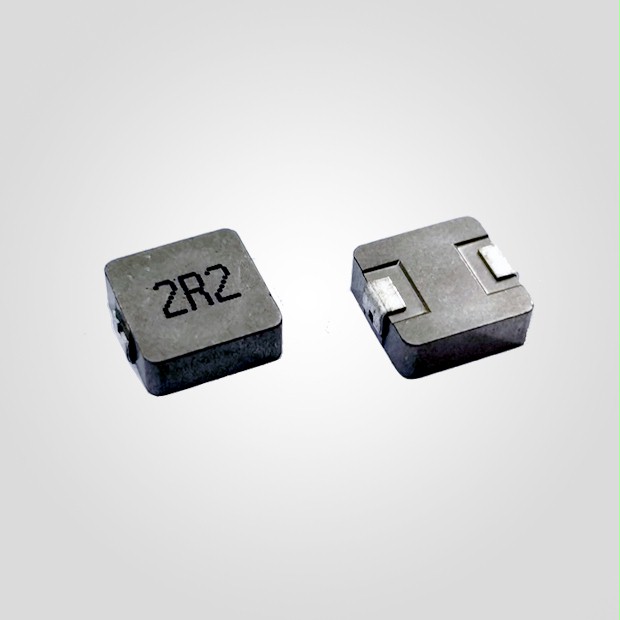

SMD High Current Molded Inductors (HI Series)
Metal alloy powder Shielded Molded Power Inductor. RoHS Compliance
| Series | Dimensions (mm) | Inductance Range | Current Range | Specification |
| HI0412 | 4.4x4.2x1.0 | 0.15uH - 4.7uH | 2.2A - 15A |
 |
| HI0420 | 4.4x4.2x1.8 | 0.1uH - 10uH | 2A - 22A |
|
| HI0518 | 5.4x5.2x1.6 | 0.47uH - 10uH | 3A - 15.5A |
|
| HI0520 | 5.4x5.2x1.8 | 0.22uH - 10uH | 3A - 19A |
|
| HI0530 | 5.4x5.2x2.8 | 0.1uH - 10uH | 3.5A - 30A |
|
| HI0615 | 7.0x6.6x1.3 | 0.47uH - 10uH | 3A - 16A |
|
| HI0618 | 7.0x6.6x1.6 | 0.1uH - 22uH | 2.3A - 38A |
|
| HI0624 | 7.0x6.6x2.2 | 0.22uH - 22uH | 2.5A - 34A |
|
| HI0630 | 7.0x6.6x2.8 | 0.22uH - 47uH | 2A - 34A |
|
| HI0640 | 7.0x6.6x3.8 | 0.68uH - 47uH | 2.5A - 19A |
|
| HI0650 | 7.0x6.6x4.8 | 0.47uH - 47uH | 2.6A - 21A |
|
| HI0840 | 8.8x8.2x3.8 | 0.22uH – 5.6uH | 11A - 60A |
|
| HI1030 | 11.5x10x2.8 | 0.22uH - 33uH | 4A - 50A |
|
| HI1040 | 11.5x10.3x3.8 | 0.15uH - 100uH | 2.3A - 75A |
|
| HI1050 | 11.5x10.3x4.8 | 0.22uH - 100uH | 2.8A - 65A |
|
| HI1240 | 13.45x12.8x4.0 | 0.22uH - 22uH | 6A - 50A |
|
| HI1250 | 13.45x12.8x5.0 | 0.22uH - 47uH | 5A - 75A |
|
| HI1260 | 13.45x12.8x6.0 | 4.7uH - 150uH | 2.7A - 24A |
|
| HI1265 | 13.45x12.8x6.5 | 4.7uH - 100uH | 4A - 24A |
|
| HI1770 | 17.15x17.15x7.0 | 2.2uH - 100uH | 5A - 34A |
|
