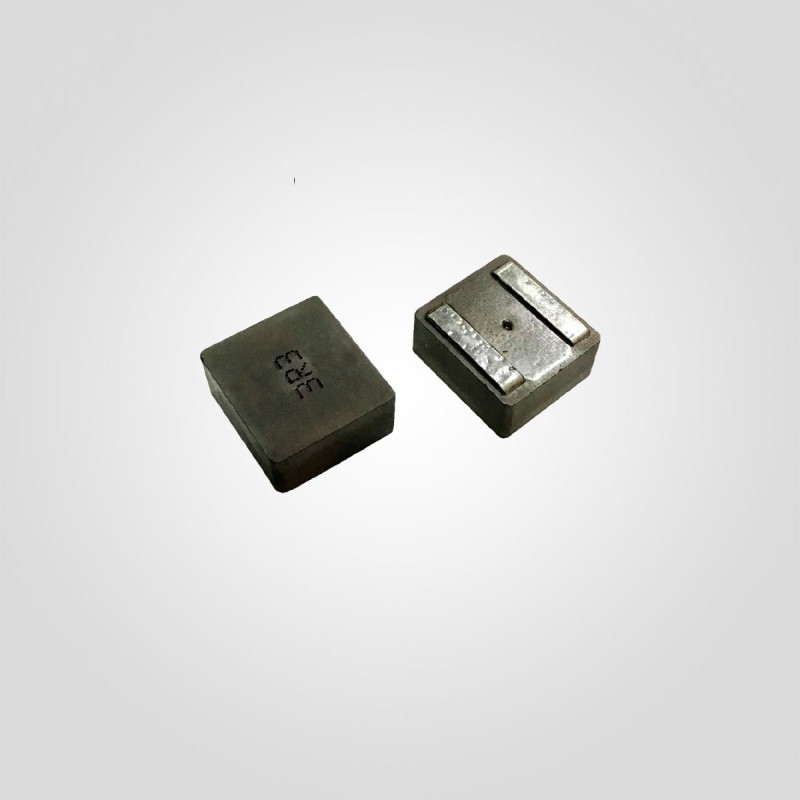

SMD Molded High Current Power Inductor - MXAL Series
Carbonyl powder Shielded Molded Power Inductor. RoHS Compliance
| Part Number | Dimensions (mm) | Inductance Range | Cross Coilcraft P/N | Specification |
| MXAL4020 | 4.3x4.3x2.1 | 0.1uH - 2.2uH | XAL4020 |
 |
| MXAL4030 | 4.3x4.3x3.1 | 0.47uH - 3.3uH | XAL4030 | |
| MXAL5020 | 5.5x5.5x2.1 | 0.16uH - 1.5uH | XAL5020 |
|
| MXAL5030 | 5.5x5.5x3.1 | 0.16uH - 4.7uH | XAL5030 | |
| MXAL5050 | 5.5x5.5x5.1 | 5.6uH - 10uH | XAL5050 | |
| MXAL6030 | 6.6x6.4x3.1 | 0.18uH - 4.5uH | XAL6030 |
|
MXAL high-performance molded power inductors are mechanically rugged and magnetically shielded for use in high-density power converter circuits.They offer high current ratings and are ideal for high switching frequencies with low AC losses.
