Detail Descriptions

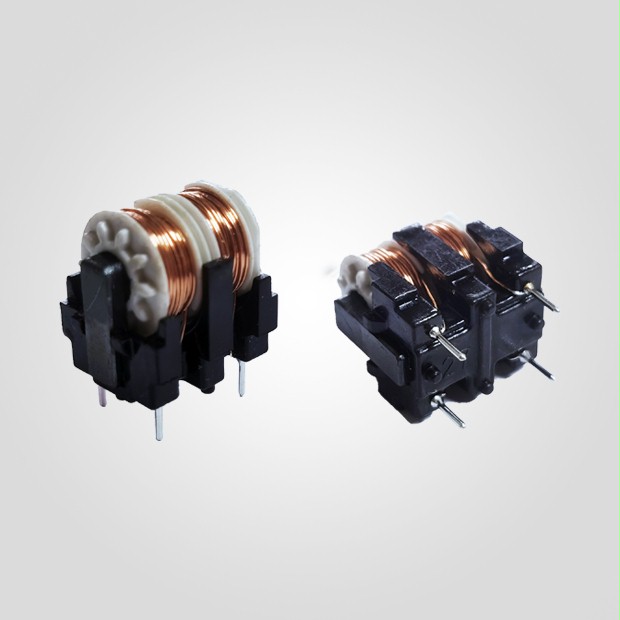

Common Mode Inductor Choke / EMI Filters (UT20 Series)
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| UT20 | 22x17x22.5 | 2.2mH - 33mH | 0.3A - 1.3A |
 |
| Part Number | Inductance [mH] | DCR [Ω] | Rated Current [A] | Cross Sumida P/N |
| UT20-222 | 2.2 | 0.24 | 1.3 | LF2020NP-222 |
| UT20-392 | 3.9 | 0.41 | 1 | LF2020NP-392 |
| UT20-103 | 10 | 1 | 0.6 | LF2020NP-103 |
| UT20-183 | 18 | 1.63 | 0.5 | LF2020NP-183 |
| UT20-223 | 22 | 2.04 | 0.4 | LF2020NP-223 |
| UT20-333 | 33 | 1.63 | 0.5 | LF2020NP-333 |
