■ Easy assembling due to 4 pin housing, Toroidal core choke with sector winding
■ High interference suppression for common mode interferences in low middle frequency
■ Flammability corresponding to UL 94 V-0
Applications
■ Power line filter, Power electronics, SMPS, Suppression of common mode noise
■ Schaffner RN202, RN212, RN214, RN222, RN242 alternatives
Detail Descriptions

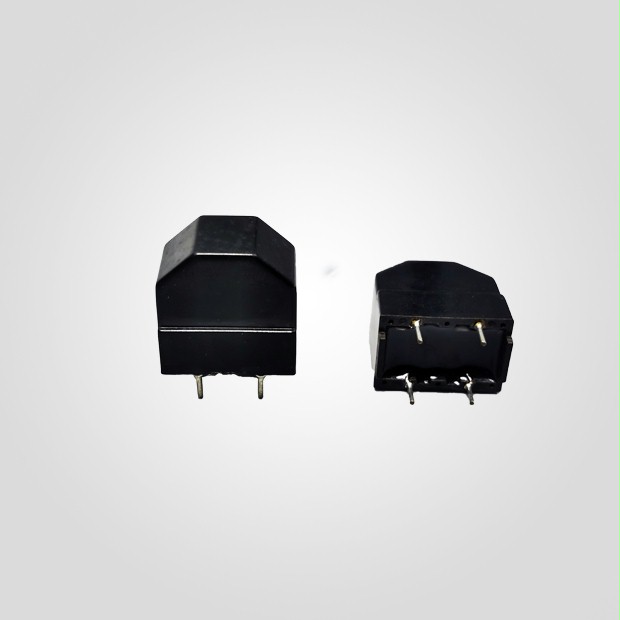

Common Mode Chokes - EMC/EMI Filters (TCC Series). RoHS Compliance
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
|
TCC202 |
18.2x8.8x13.5 |
1.1mH - 12mH |
0.3A - 2A |
 |
|
TCC212 |
18x12.5x20 |
0.7mH - 39mH |
0.4A - 4A |
|
TCC214 |
23x15.5x25 |
1.5mH - 47mH |
0.3A - 4A |
|
TCC222 |
31x18x29.3 |
3.3mH - 47mH |
0.6A - 4A |
|
TCC242 |
31x18x34.3 |
1.8mH - 82mH |
0.5A - 6A |
