Detail Descriptions

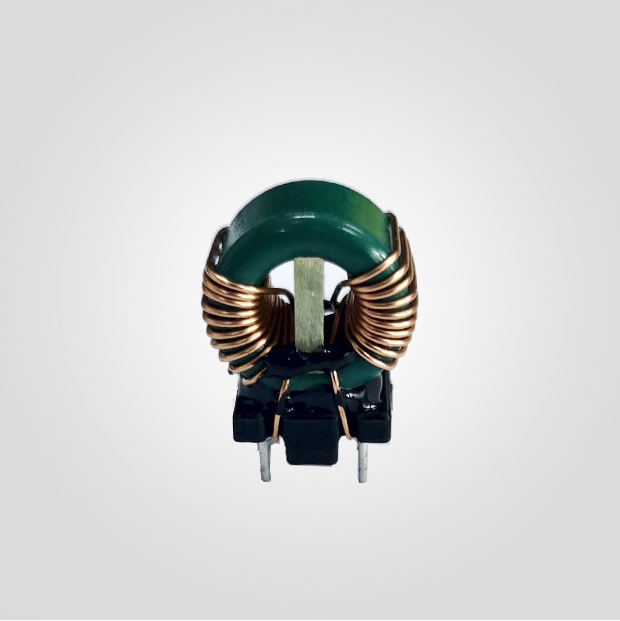

Common mode chokes (CTRN Series). Custom design available. Contact us to get free samples.
| Series | Dimensions (mm) | Inductance Range | Current Range | Specification |
| CTRN1205 | 16.0x7.5x18 | 14uH - 100uH | 1.5A – 4.0A |
 |
| CTRN1409 | 18.5x14.5x22 | 16uH - 110uH | 3.0A – 7.5A |
|
| Part Number | Inductance | DCR | Rated Current | Cross Wurth P/N |
| CTRN1205-140N | 14uH | 15mΩ | 4A | 744841414 |
| CTRN1205-300N | 30uH | 26mΩ | 3A | 744841330 |
| CTRN1205-470N | 47uH | 40mΩ | 2A | 744841247 |
| CTRN1205-101N | 100uH | 80mΩ | 1.5A | 744841210 |
| Part Number | Inductance | DCR | Rated Current | Cross Wurth P/N |
| CTRN1409-160N | 16uH | 5.5mΩ | 4A | 744842816 |
| CTRN1409-320N | 32uH | 11mΩ | 3A | 744842632 |
| CTRN1409-420N | 42uH | 8.9mΩ | 2A | 744842742 |
| CTRN1409-650N | 65uH | 14.3mΩ | 1.5A | 744842565 |
| CTRN1409-111N | 110uH | 34.1mΩ | 1.5A | 744842311 |
