Detail Descriptions

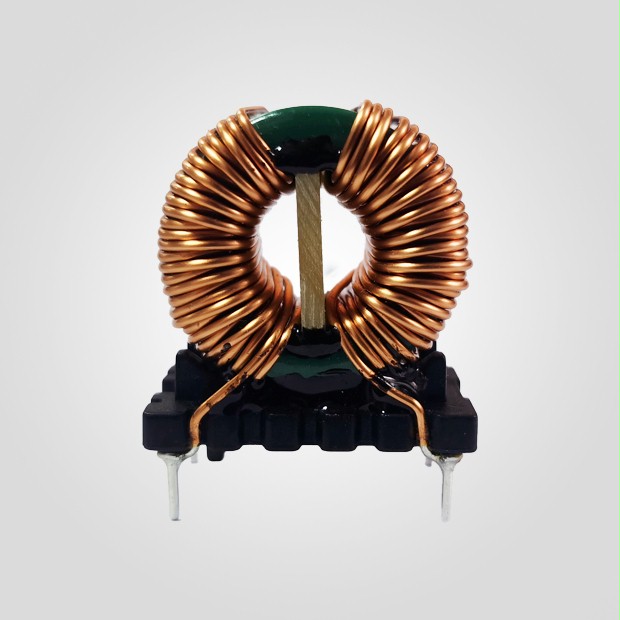

Common mode Choke (CTR Series) are ideal for any application requiring a high DC current bias and are well suited for use in switch mode power supplies. RoHS Compliance
| Series | Dimensions (mm) | Inductance Range | Current Range | Specification |
| CTR1205 | 15.8x8x18 | 1.0mH - 39mH | 0.3A - 2.0A |
 |
| CTR1409 | 17.5x13x22 | 1.0mH - 20mH | 0.5A - 3.0A |
|
| CTR2010 | 23.5x13.8x25.5 | 1.0mH - 20mH | 1.5A - 6.0A |
|
| CTR2214 | 27.5x18.5x33 | 1.0mH - 20mH | 2.0A - 7.5A |
|
| CTR2620 | 31x21x35 | 1.0mH - 33mH | 3.0A - 12.0A |
|
| Part Number | Inductance[mH] | Rated Current [A] | DCR [mΩ] | Cross Wurth P/N |
| CTR1205-102N | 1mH | 2 | 45 | 744821201 |
| CTR1205-402N | 4mH | 1.5 | 140 | 744821240 |
| CTR1205-502N | 5mH | 1 | 200 | 744821150 |
| CTR1205-103N | 10mH | 0.7 | 350 | 744821110 |
| CTR1205-203N | 20mH | 0.5 | 1000 | 744821120 |
| CTR1205-393N | 39mH | 0.3 | 3000 | 744821039 |
| Part Number | Inductance | Rated Current | DCR | Cross Wurth P/N |
| CTR1409-102N | 1.0mH | 3A | 35mΩ | 744822301 |
| CTR1409-222N | 2.2mH | 2A | 70mΩ | 744822222 |
| CTR1409-332N | 3.3mH | 1.5A | 120mΩ | 744822233 |
| CTR1409-103N | 10.0mH | 1A | 360mΩ | 744822110 |
| CTR1409-203N | 20.0mH | 0.5A | 540mΩ | 744822120 |
| Part Number | Inductance | Rated Current | DCR | Cross Wurth P/N |
| CTR2010-102N | 1.0mH | 6A | 13mΩ | 744823601 |
| CTR2010-222N | 2.2mH | 4A | 30mΩ | 744823422 |
| CTR2010-332N | 3.3mH | 2.5A | 60mΩ | 744823333 |
| CTR2010-502N | 5.0mH | 2.5A | 95mΩ | 744823305 |
| CTR2010-103N | 10.0mH | 2A | 125mΩ | 744823220 |
| CTR2010-203N | 20.0mH | 1.5A | 270mΩ | 744823210 |
| Part Number | Inductance | Rated Current | DCR | Cross Wurth P/N |
| CTR2214-102N | 1.0mH | 7.5A | 10mΩ | 744824801 |
| CTR2214-222N | 2.2mH | 6A | 20mΩ | 744824622 |
| CTR2214-332N | 3.3mH | 4A | 35mΩ | 744824433 |
| CTR2214-502N | 5.0mH | 4A | 50mΩ | 744824405 |
| CTR2214-702N | 7.0mH | 3.5A | 80mΩ | 744824407 |
| CTR2214-103N | 10.0mH | 3A | 105mΩ | 744824310 |
| CTR2214-203N | 20.0mH | 2A | 220mΩ | 744824220 |
| Part Number | Inductance | Rated Current | DCR | Cross Wurth P/N |
| CTR2620-102N | 1.0mH | 12A | 9mΩ | 7448251201 |
| CTR2620-222N | 2.2mH | 8A | 14mΩ | 7448258022 |
| CTR2620-332N | 3.3mH | 6A | 25mΩ | 7448256033 |
| CTR2620-502N | 5.0mH | 6A | 45mΩ | 744825605 |
| CTR2620-103N | 10.0mH | 4.5A | 70mΩ | 744825410 |
| CTR2620-203N | 20.0mH | 3A | 160mΩ | 744825320 |
| CTR2620-333N | 33.0mH | 3A | 210mΩ | 744825433 |
