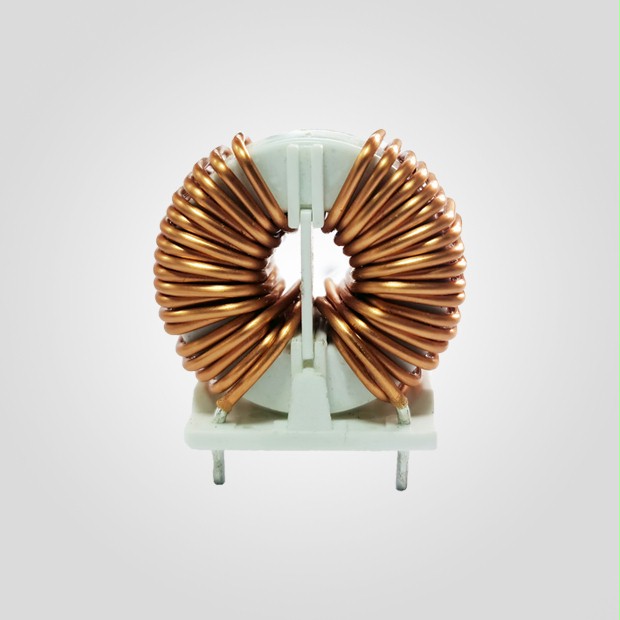

Common Mode Inductors

Characteristics

■ High permeability MnZn core material, Application up to 760 VAC

■ Suppression frequency range: 5 kHz to 5 MHz

■ Improved insulation through plastic case and winding spacer

Applications

■ Power electronics, Power line in and output filter

■ Radio interference suppression in motors, Suppression for common mode noise

Detail Descriptions

Common mode chokes are used to reduce AC line conducted interference. RoHS Compliance

Download Spec(1730KB)

Part No.	OD	T	H	Inductance [mH]	Rated Current [A]
CMV-02-10J	25	20	27	1	2
CMV-02-20J	25	20	27	2	2
CMV-02-30J	25	20	27	3	2
CMV-02-50J	25	20	27	5	2
CMV-02-70J	25	20	27	7	2
CMV-02-100J	25	20	27	10	2
CMV-02-E115J	25	15.4	27.5	11.5	2
CMV-02-E120J	24	16	25	12	2
CMV-02-300J	33	23	33	30	2
CMV22-025-290J	30	20	29	29	2.5
CMV-03-28J	25	20	27	2.8	3
CMV-03-30J	25	20	27	3	3
CMV-03-55J	25	20	27	5.5	3
CMV-03-67J	24	20	26	6.7	3
CMV-03-85J	25	20	27	8.5	3
CMV-04-20JN	25	20	27	2	4
CMV-05-50J	34	23	33	5	4
CMV-05-80J	34	23	33	8	4
CMV22-04-100J	30	22	32	10	4
CMV-04-200J	34	23	33	20.3	4
CMV-04-E17J	23.5	19.4	24	1.785	4.3
CMV-04-E50J	23.5	19.4	24	5.18	4.3
CMV-05-06J	25	20	27	0.6	5
CMV-05-10J	25	20	27	1	5
CMV-05-15J	25	20	27	1.5	5
CMV-05-21J	34	23	33	2	5
CMV-05-20J	34	23	33	2	5
CMV-05-27J	25	20	27	2.7	5
CMV-05-30J	34	23	33	3	5
CMV22-05-30J	28	18.5	29	3	5
CMV22-05-70J	28	18.5	29	7	5
CMV-05-100J	34	23	33	10.5	5
CMV-06-10J-B	25	20	27	1	6
CMV-06-35J	34	24	33	3.5	6
CMV-06-40J	35	25	33	4	6
CMV-06-60J	34	25	33	6	6
CMV22-06-60J	29.5	20.5	29.5	6	6
CMV-07-10J	34	23	33	1	7
CMV-07-30JM	33	23	33	3	7
CMV-07-42J	34	24	33	4.2	7
CMV-07-70J	35	25	35	7	7
CMV-07-90J	34	23	33	9	7
CMV-07-50J	34	24	33	5	7.3
CMV-08-E075J	25	16	25.5	0.75	8
CMV-08-20J	34	23	33	2	8
CMV-08-30J	34	23	33	3	8
CMV-08-44J	35	23	33	4.4	8
CMV-08-100JM	41	32	40	13	8
CMV-10-E035J	25	16	24	0.35	10
CMV-10-10J	34	23	33	1	10
CMV-10-14J	34	24	33	1.4	10
CMV-10-15J-MI	34	23	34	1.5	10
CMV-10-18J	34	24	33	1.6	10
CMV-10-20J	42	29	44	2	10
CMV-10-30J	34	24	33	3	10
CMV-10-E55J	44	30	44	5.5	10
CMV-11-16J	35	23	33	1.6	11
CMV-11-20J	35	23	33	2	11
CMV-12-E035J	25	16	25.5	0.35	12
CMV-12-15J	42	29	44	1.5	12
CMV-14-12J	34	24	33	1.2	14
CMV-15-02J	34	23	33	0.2	15
CMV-15-05J	34	23	33	0.5	15
CMV-15-07J	36	25	35	0.702	15
CMV-15-09J	36	25	35	0.9	15
CMV-15-10J	44	30	44	1	15
CMV-15-12J-MI	35	25	35	1.2	15
CMV-15-E37J	44	30	44	3.7	15
CMV-18-05J	44	30	44	0.5	18
CMV-18-10J	35	24	33	0.85	18
CMV-18-085J	36	25	35	0.95	18
CMV-18-095J	36	25	35	1.2	18
CMV-18-E12J	50	31	50	1.5	18
CMV-18-E15J	44	30	44	2.5	18
CMV-18-25J	44	30	44	0.15	20
CMV-20-01J-A	35	24	34	0.3	20
CMV-20-03J	35	24	34	0.488	20
CMV-20-05J-P	36	25	35	0.7	20
CMV-20-E085JM	46	32	46	1.2	20
CMV-20-E18J	50	31	53	1.8	20

Custom design available.
