Detail Descriptions

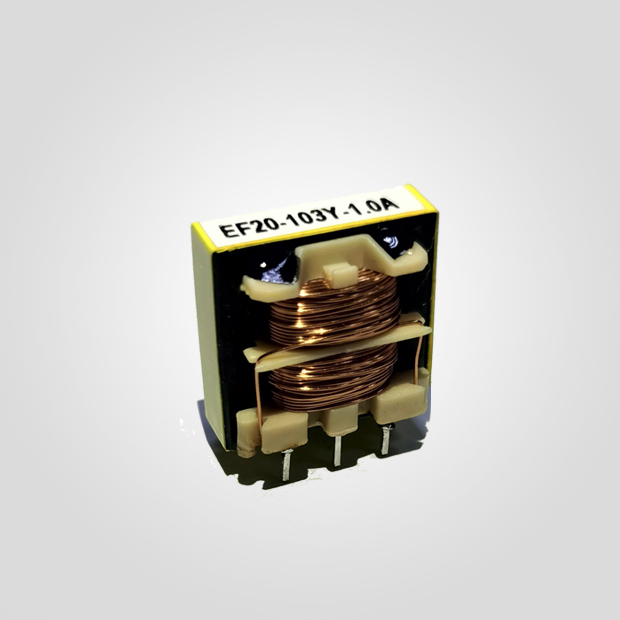

Current-compensated E core double chokes (EF20 Series) Custom design available.
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| EF20 | 21.5x14.5x21.1 | 3.3mH - 100mH | 0.3A - 1.8A |
 |
| Part Number | Inductance[mH] | Rated Current [A] | DCR [Ω] | Cross TDK P/N |
| EF20-332Y-1.8A | 3.3 | 1.8 | 0.2 | B82731T2182A020 |
| EF20-682Y-1.3A | 6.8 | 1.3 | 0.37 | B82731T2132A020 |
| EF20-103Y-1.0A | 10 | 1 | 0.63 | B82731T2102A020 |
| EF20-153Y-0.8A | 15 | 0.8 | 0.95 | B82731T2801A020 |
| EF20-273Y-0.65A | 27 | 0.65 | 1.6 | B82731T2651A020 |
| EF20-393Y-0.55A | 39 | 0.55 | 2.2 | B82731T2551A020 |
| EF20-473Y-0.45A | 47 | 0.45 | 2.8 | B82731T2451A020 |
| EF20-683Y-0.35A | 68 | 0.35 | 4.4 | B82731T2351A020 |
| EF20-104Y-0.30A | 100 | 0.3 | 6.6 | B82731T2301A020 |
