Detail Descriptions

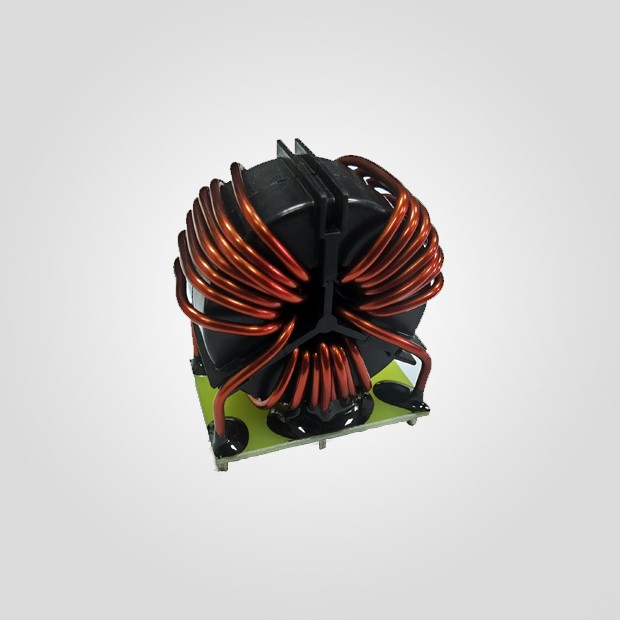

Three-Phase Common Mode Chokes - CTP8532 Series
| Series | Dimensions (mm) | Inductance Range | Rated Current | Specification |
| CTP8532-602Y-6A | 44x32x47 | 6mH / 4.8mH | 6A / 8A |
 |
| CTP8532-482Y-8A | ||||
| CTP8532-402Y-10A | 49x34x53 | 4mH / 3.6mH | 10A / 12A | |
| CTP8532-362Y-12A | ||||
| CTP8532-302Y-16A | 56x37x60 | 3mH / 2.5mH | 16A / 20A | |
| CTP8532-252Y-20A |
Common mode chokes (CMCs) based on nanocrystalline offer highest attenuation in compact designs for a wide range of EMI requirements. The broad portfolio of standard types offers solutions for 1-phase and 3-phase applications as well as 4-fold CMCs.
