Detail Descriptions

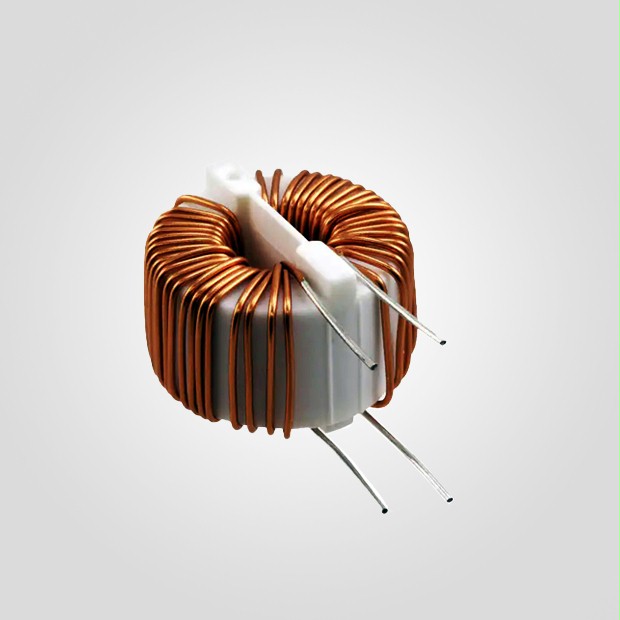

China Common Mode EMI Chokes (CMC Series). Custom design available.
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
CMC1511 |
16.5 max |
11.43 max |
15.25 max |
0.51mH - 4.25mH |
1A - 3A |
 |
|
CMC2014 |
20.32 max |
13.97 max |
20.32 max |
0.85mH - 6.80mH |
2A - 5A |
|
|
CMC3020 |
30.48 max |
20.32 max |
30.48 max |
1.70mH - 42.5mH |
2A - 10A |
|
|
Part Number |
Inductance [mH] |
Rated Current [A] |
DCR [Ω] |
Cross Bourns P/N |
|
CMC1511-R51-1A |
0.51 |
1.0 |
0.040 |
7101-RC |
|
CMC1511-R85-1A |
0.85 |
1.0 |
0.060 |
7102-RC |
|
CMC1511-1R7-1A |
1.70 |
1.0 |
0.070 |
7103-RC |
|
CMC1511-2R5-1A |
2.55 |
1.0 |
0.100 |
7104-RC |
|
CMC1511-4R2-1A |
4.25 |
1.0 |
0.125 |
7105-RC |
|
CMC1511-R51-2A |
0.51 |
2.0 |
0.030 |
7106-RC |
|
CMC1511-R85-2A |
0.85 |
2.0 |
0.040 |
7107-RC |
|
CMC1511-1R7-2A |
1.70 |
2.0 |
0.060 |
7108-RC |
|
CMC1511-2R5-2A |
2.55 |
2.0 |
0.075 |
7109-RC |
|
CMC1511-R51-3A |
0.51 |
3.0 |
0.020 |
7110-RC |
|
CMC1511-R85-3A |
0.85 |
3.0 |
0.030 |
7111-RC |
|
CMC2041-R85-2A |
0.85 |
2.0 |
0.050 |
7112-RC |
|
CMC2041-1R7-2A |
1.70 |
2.0 |
0.075 |
7113-RC |
|
CMC2041-2R5-2A |
2.55 |
2.0 |
0.085 |
7114-RC |
|
CMC2041-4R2-2A |
4.25 |
2.0 |
0.110 |
7115-RC |
|
CMC2041-6R8-2A |
6.80 |
2.0 |
0.200 |
7116-RC |
|
CMC2041-R85-5A |
0.85 |
5.0 |
0.035 |
7117-RC |
|
CMC3020-1R7-5A |
1.70 |
5.0 |
0.040 |
7118-RC |
|
CMC3020-4R2-4A |
4.25 |
4.0 |
0.046 |
7119-RC |
|
CMC3020-6R8-4A |
6.80 |
4.0 |
0.060 |
7120-RC |
|
CMC3020-42R-2A |
42.5 |
2.0 |
0.200 |
7121-RC |
|
CMC3020-25R-4A |
25.5 |
4.0 |
0.130 |
7122-RC |
|
CMC3020-9R3-5A |
9.35 |
5.0 |
0.072 |
7123-RC |
|
CMC3020-2R5-10A |
2.55 |
10 |
0.020 |
7124-RC |
